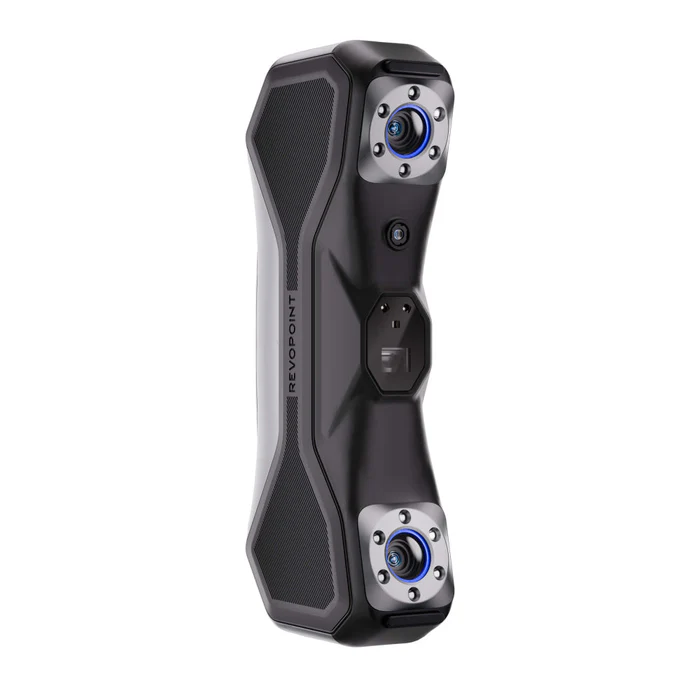

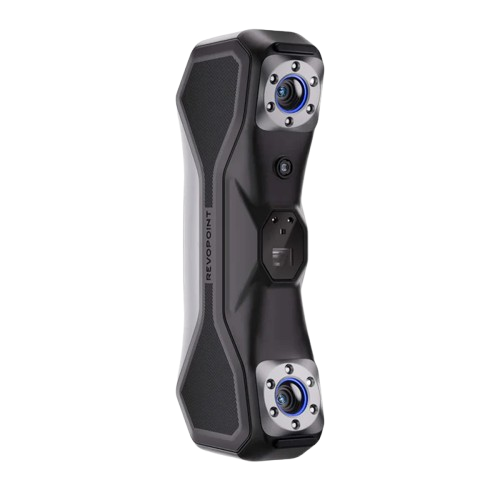

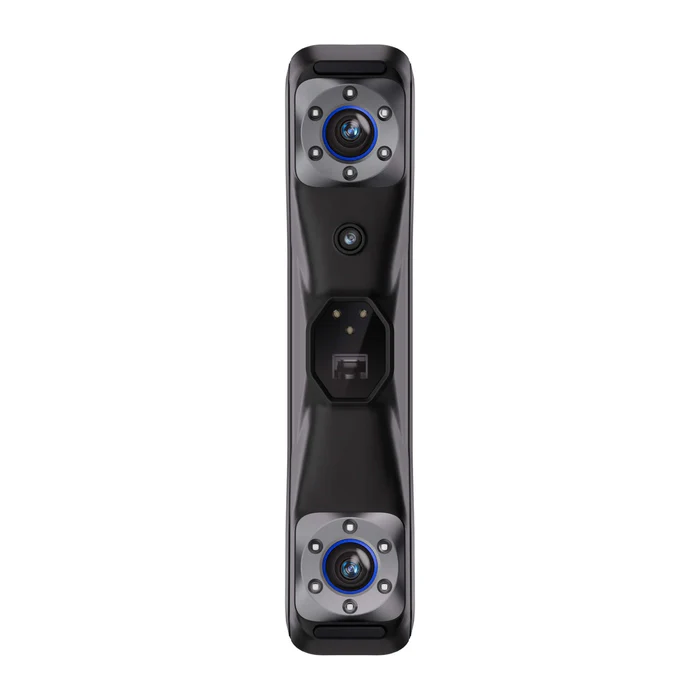

Revopoint Metro 3D Scanner

Blue Light Scanning Breakthrough

Key Feature:

4 Flexible Scanning Modes
Metrology-grade Accuracy: Up to 0.02 mm
Volumetric Accuracy: 0.025 mm + 0.05 mm × L (m)
Up to 7,000,000 Points/s in Full-field Structured Light Mode
Up to 800,000 Points/s in Multi-line Laser Mode

Blue Light Scanning Breakthrough

The Revopoint MetroX is a professional, metrology-grade 3D scanner that combines blue laser and structured light technologies to capture highly accurate and detailed 3D models. It is designed for industrial applications like reverse engineering, quality control, and product design, with scanning accuracy up to 0.020.02 0.02 mm and a high capture speed of up to 7 million points per second

Cross Lines
Up to 800,000 points per second with GPU accelerated 14 crossed blue laser lines.
Parallel Lines
Capture objects with 7 high-powered parallel blue laser lines.
Full-field Blue Structured Light
Get it scanned fast at up to 7 million points per second using 62 lines of structured blue light.
Auto Turntable
One-click scans with the Dual-axis Turntable, Revo Scan, and MetroX working in unison.
Metrology-grade Accuracy
Precision: Up to 0.01 mm Accuracy: Up to 0.02 mm
Marker Blocks Help Scan Faster
This handy set of shaped marker blocks makes setting up featureless object scans much faster.

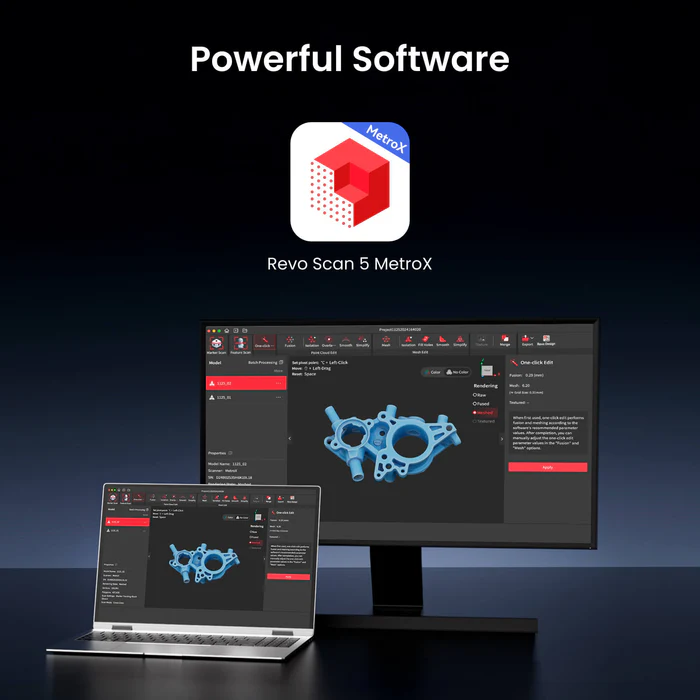

Powerful Software Revo Scan 5 MetroX
Revo Scan 5 MetroX does everything from point cloud creation to fusion, meshing, editing, merging, importing, and exporting.

Get a Call Back

Leave us your details our team will get in touch soon

Videos

Revopoint MetroX 3D Scanner: Highly Detailed Scan

Revopoint MetroX 3D Scanner: Every Surface, Every

Revopoint Metro x 3D scanner

Product Gallery

Revopoint Metro-7

Revopoint Metro-8

Revopoint Metro-9

Revopoint Metro-10

Revopoint Metro-1

Revopoint Metro-2

Revopoint Metro-3

Revopoint Metro-4

Revopoint Metro-5

Revopoint Metro-6

Detailed Specifications

Scanning Type	Handheld and Desktop
Technology	Multi-line Laser Scan and Full-field Structured Light Scan
Scannable Object Size	Small to Medium
Single-frame Precision	0.01 mm
Single-frame Accuracy	0.02 mm
Volumetric Accuracy	0.025 mm + 0.05 mm × L (m) L is the length of the object
Working Distance	200 ~ 400 mm
Compatible Operating Systems	Windows 10/11 (64-bit), macOS 11.0 or better
Built-in Chip Computing	Depth Map Computing

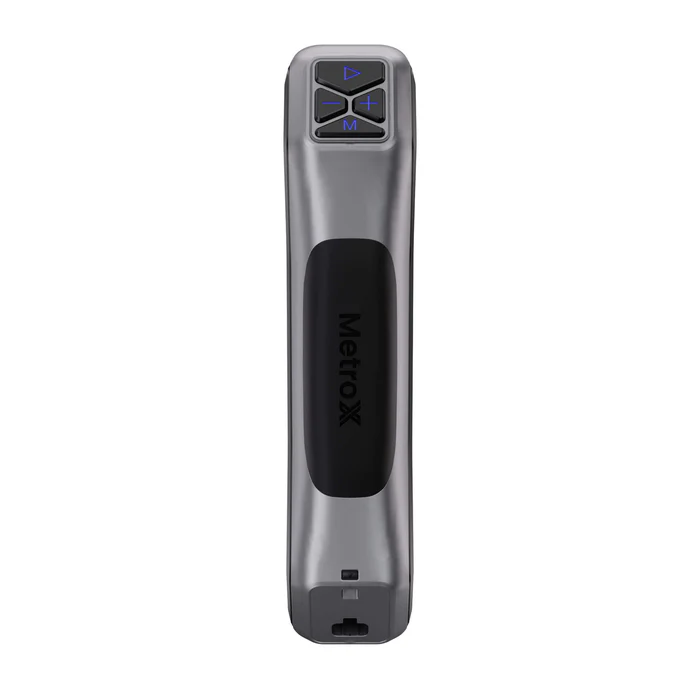

Buttons	4
Outdoor Scanning	No
Output File Formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Ready to Print 3D Models	Yes
Fused Point Distance	0.05 mm
Connector Type	USB Type-C
Single Capture Area at Nearest Distance	160 x 70 mm at 200 mm
Power Requirements	DC 12V, 3A
Single Capture Area at Furthest Distance	320 x 215 mm at 400 mm
3D Light Source	14 Blue Cross Laser Lines 7 Blue Parallel Laser Lines 62 Line Blue Full-field Structured Light
Angular Field of View (H x V)	43 × 33°
Dimensions (L x W x H)	209 × 88 × 44 mm
Maximum Scan Volume	1 × 1 × 1 m
Minimum Scan Volume	10 × 10 × 10 mm
User Recalibration	Yes
Scanning Speed	Multi-line Blue Laser: 800,000 Points/s Full Field Blue Light: 7,000,000 Points/s

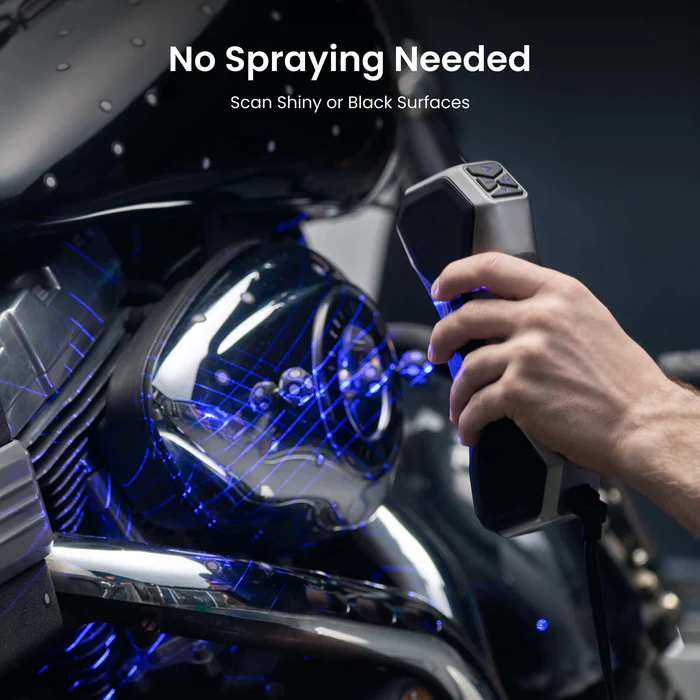

Special Object Scanning	Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
Depth Camera Resolution	2 Megapixels
RGB Camera Resolution	2 Megapixels

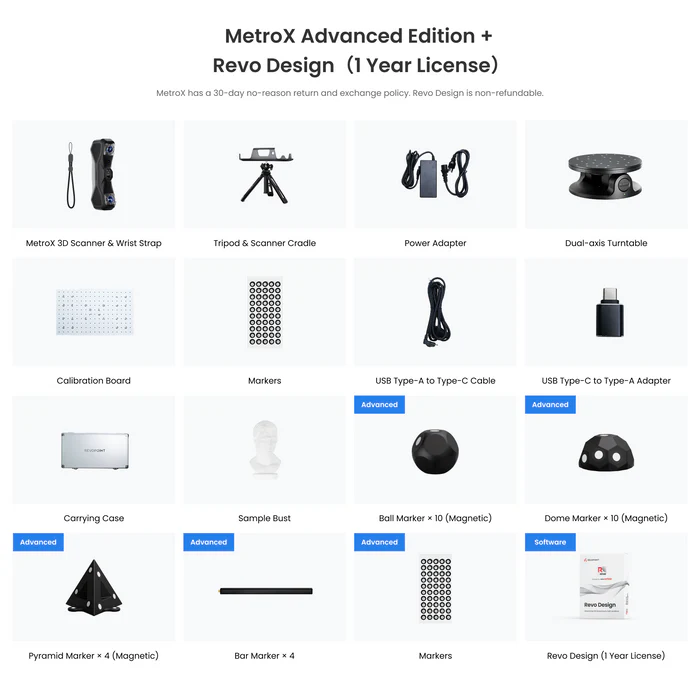

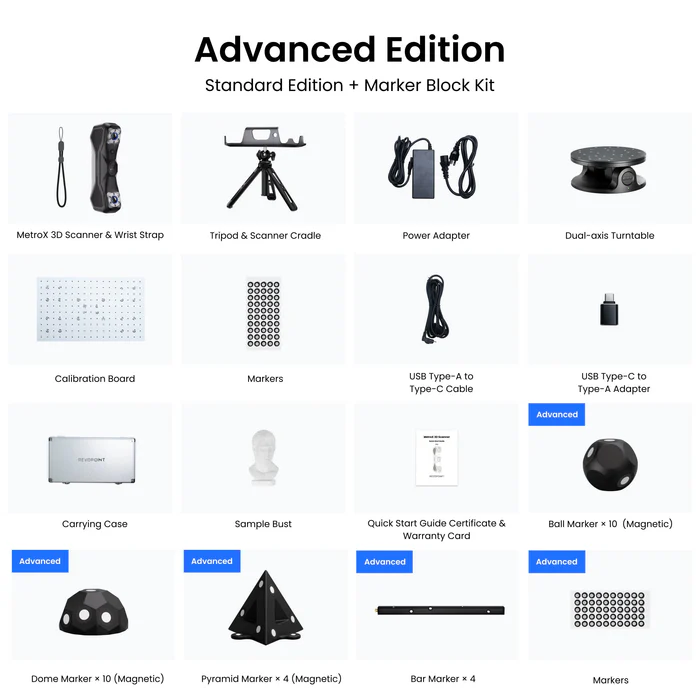

Supported Accessories	Dual-axis Turntable, Marker Block Kit
Color Scanning	Only in Auto Turntable Mode
CPU	4 core ARM, 2.0 GHz
Tracking Methods	Feature, Marker, Global Marker
Fill Lights	12 Blue LEDs
Recommended PC Requirements	macOS CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 64GB GPU: NVIDIA RTX 4060 (8 GB) or better

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
