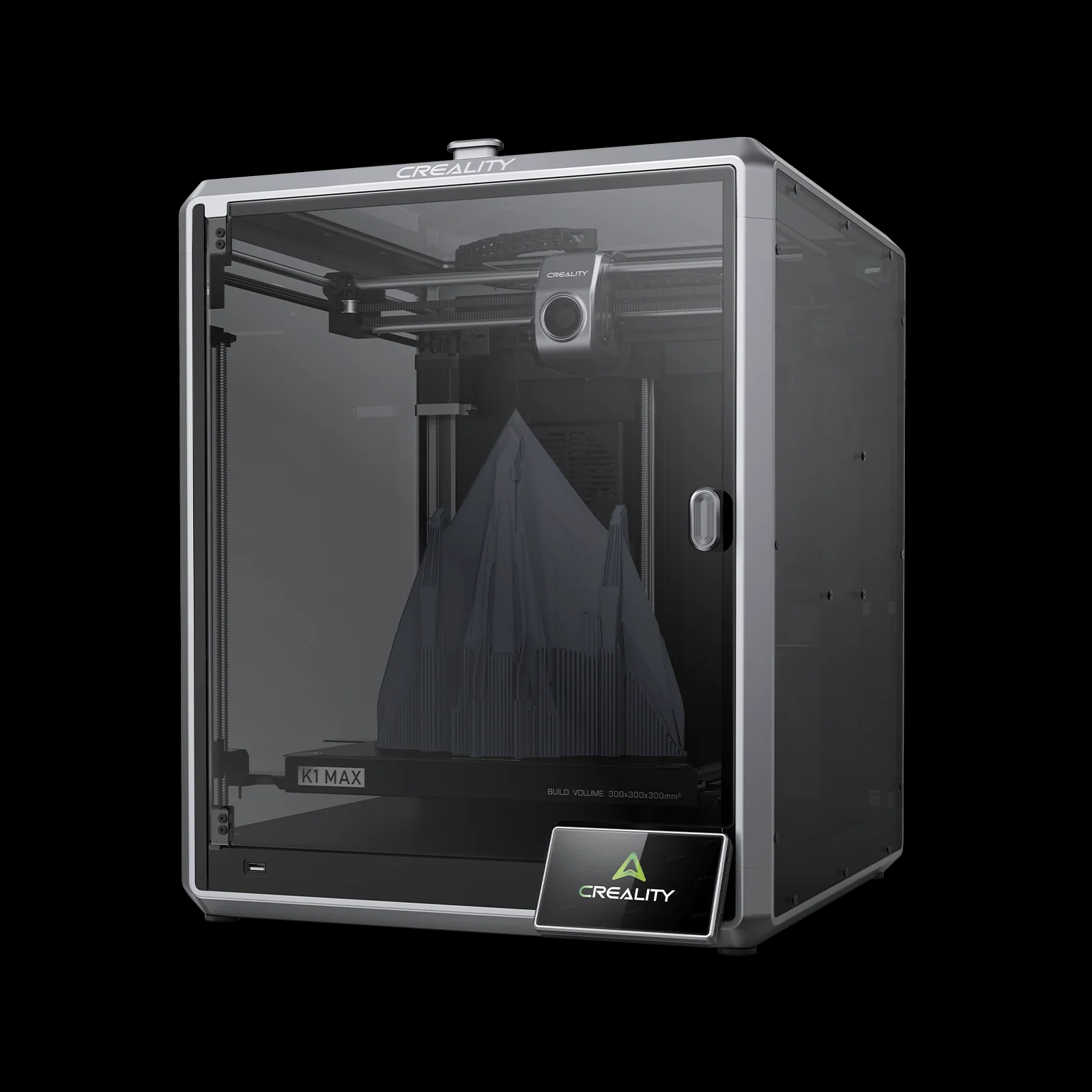

AI Fast 3D Printer
Key Feature:
The K1 Max’s design as a CoreXY style 3D printer does lend itself to speedy printing, with the print bed static for each layer and a belt and rod arrangement for the X- and Y- axes movement.K1 Max makes use of a new and seemingly proprietary ceramic hot end that can heat quickly. Creality states it can go from cold to 200 °C in just 40 seconds. Judging by the company’s description, it is what we’d consider all-metal, with a titanium-alloy heatbreak. It can heat to 300 °C and comes with a hardened steel nozzle as standard. Filament is fed by a dual-gear direct extruder. Further smartness on the K1 Max comes in the form of a camera which, paired with “AI” (here a machine vision system), provides a degree of print overwatch. In addition to remote monitoring of your print in progress, and timelapse recording, the camera system will watch out for debris and other signs of print failure.
K1 Max reaches 600mm/s* in only 0.03s based on 20000mm/s² acceleration. It can be as productive as several 3D printers together. K1 Max: 600mm/s Regular 3D Printer: 50mm/s* The 600mm/s speed is achieved at Creality Lab in the Surface Mode with 0.1mm layer height. * The typical speed is 300mm/s. The travel speed is 800mm/s.

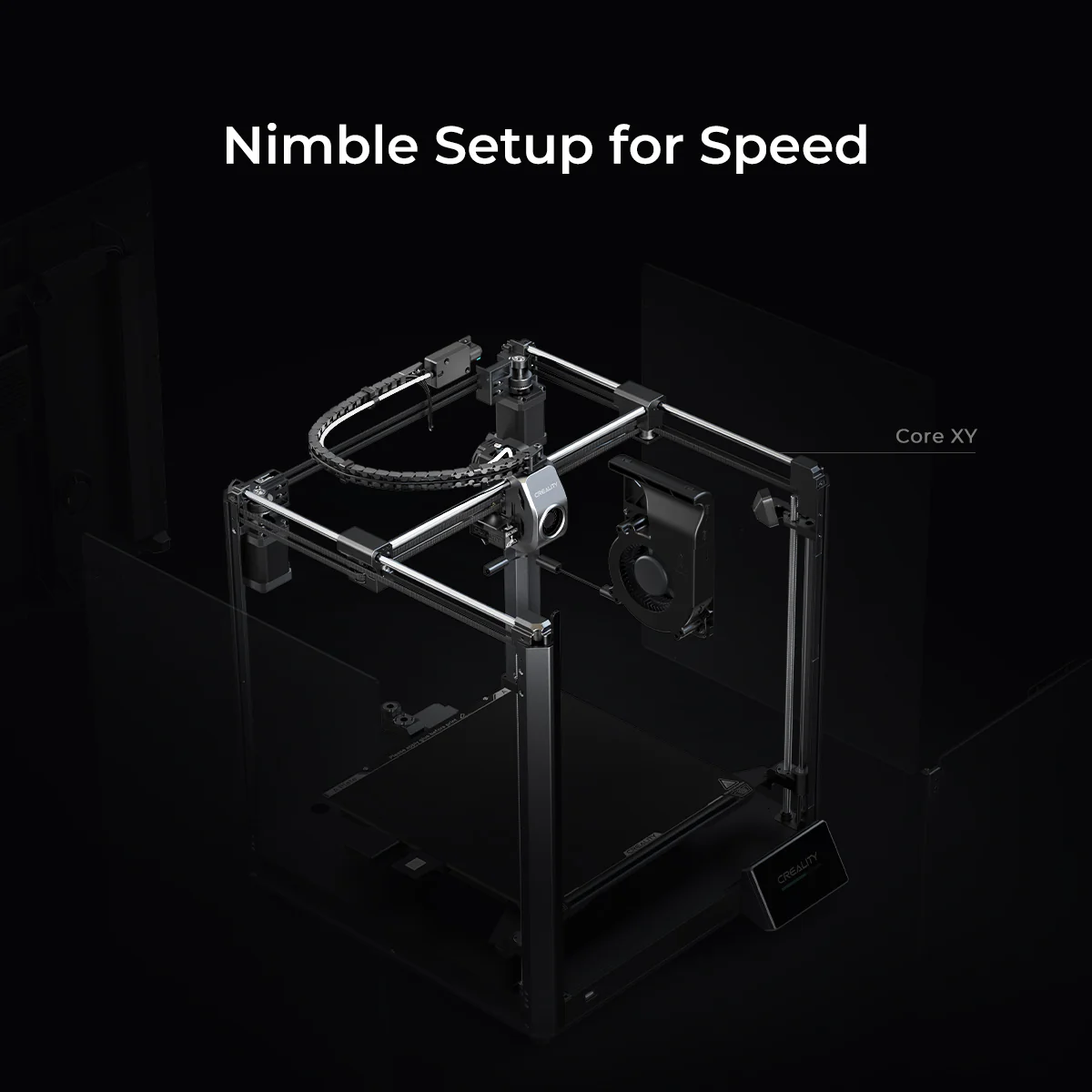

K1 Max combines the nimble Core XY with a 190g lightweight printhead for less motion inertia. Agile and swift.

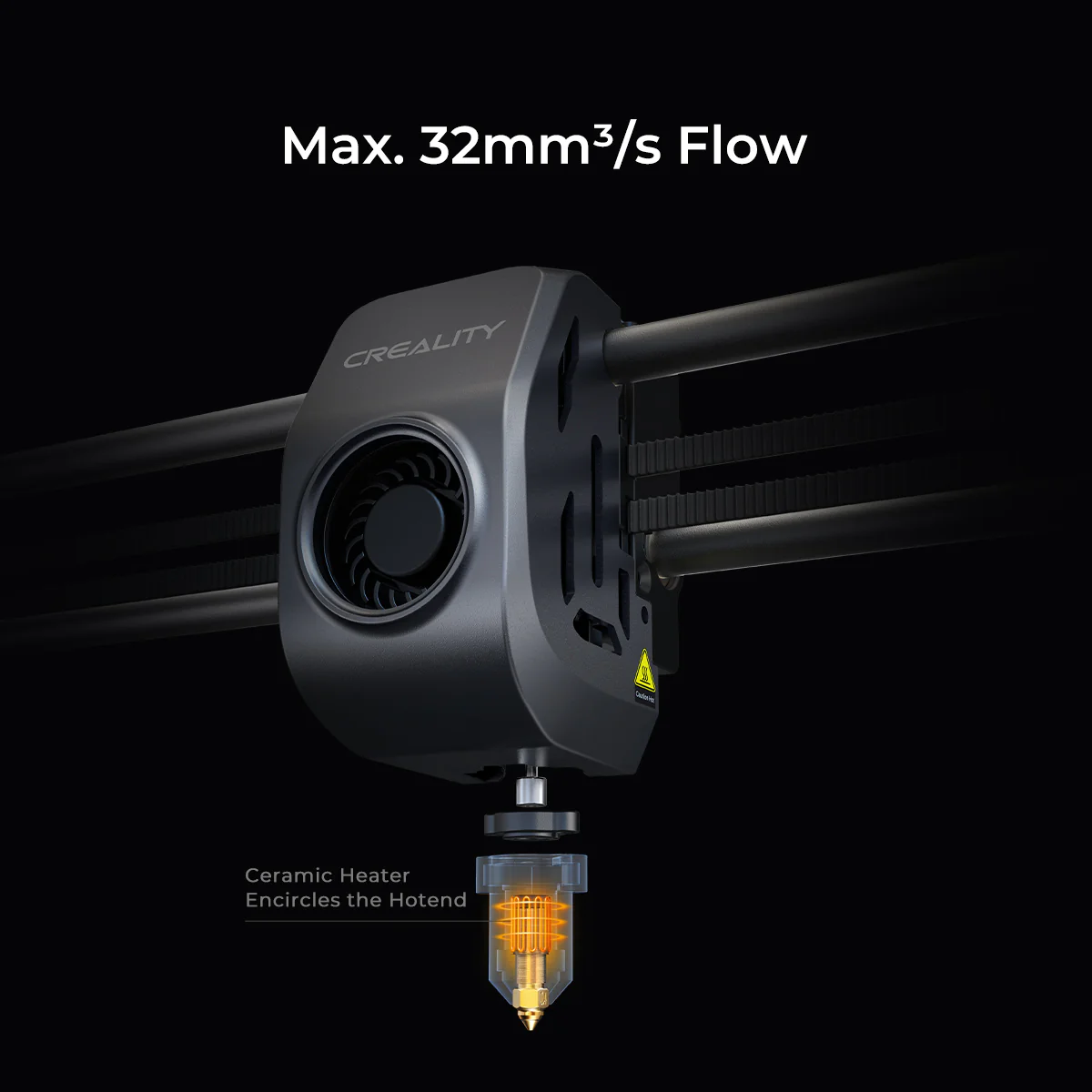

New ceramic heater, encircling the entire hotend. It heats to 200℃ in 40s and melts the filament instantly.Dual-gear direct extruder, delivering strong extrusion force.Hotend with a titanium alloy heatbreak and a hardened steel nozzle, working with flying colors in up to 300℃.Ceramic Heater Encircles the Hotendtt

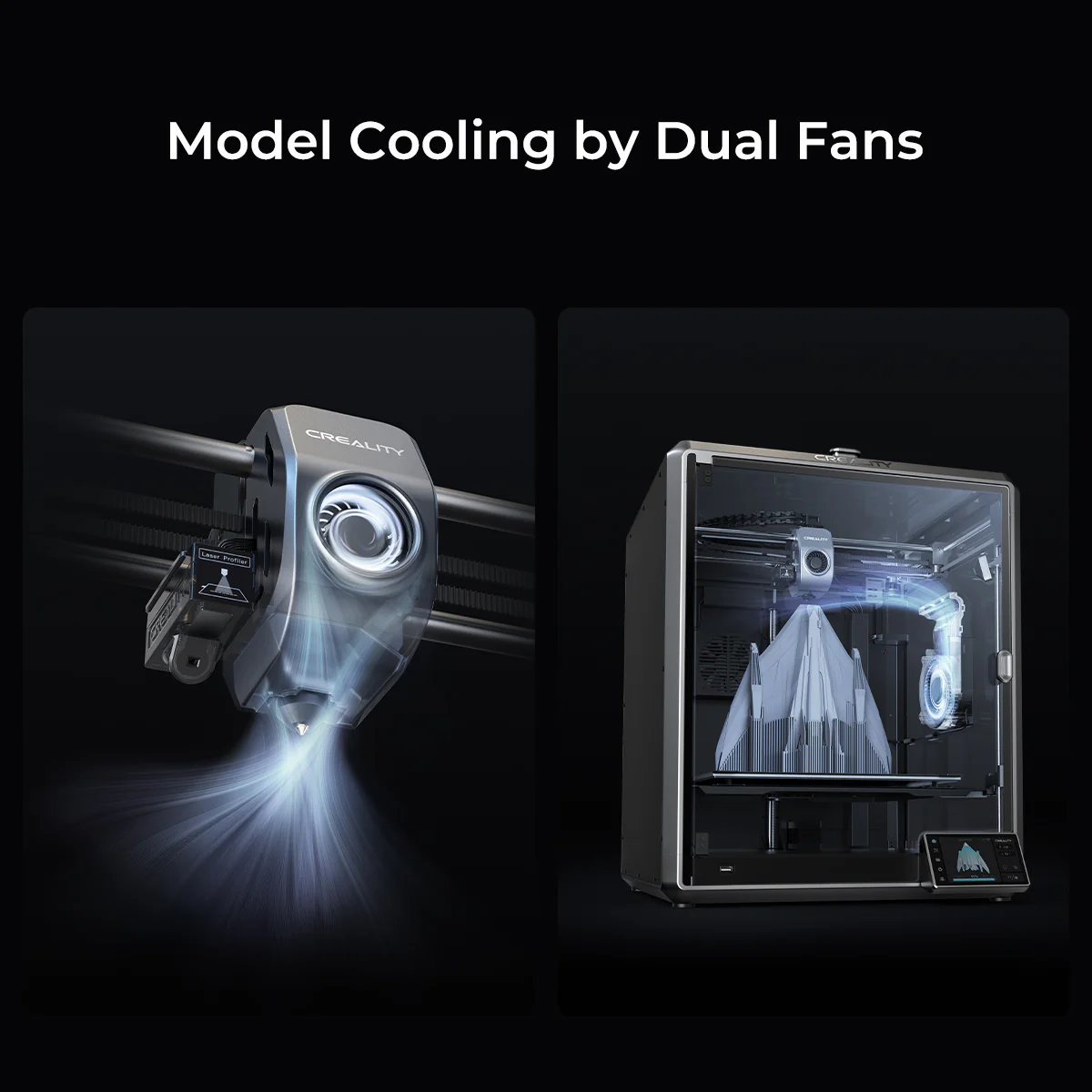

A large fan on the printhead with air ducts cools the model directly.An 18W auxiliary fan in the build chamber enhances the cooling effect, too.

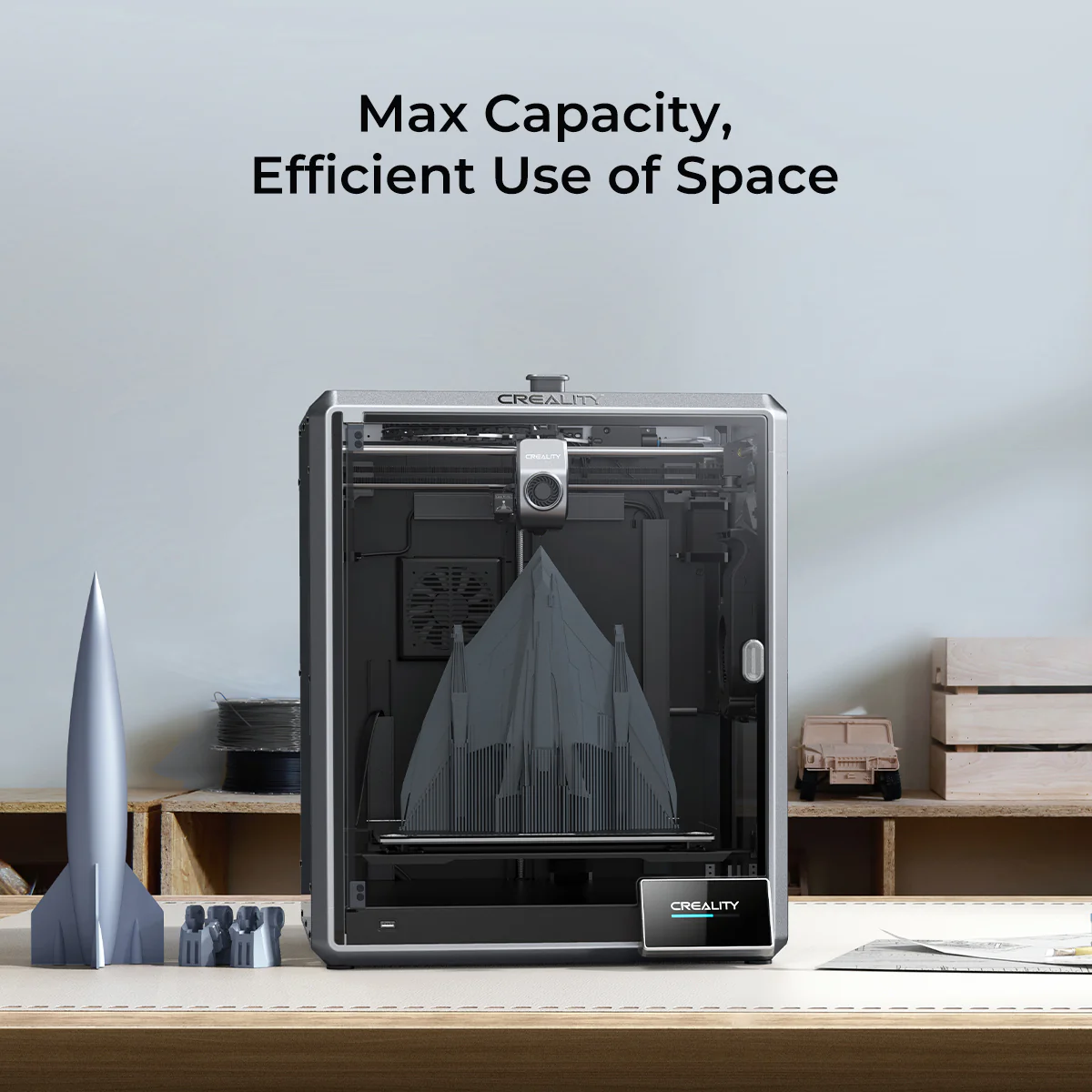

K1 Max boasts a 300x300x300mm large build volume, great for rapid prototyping or design verification. It also offers a high build volume to printer size ratio of 25.5%.ttt

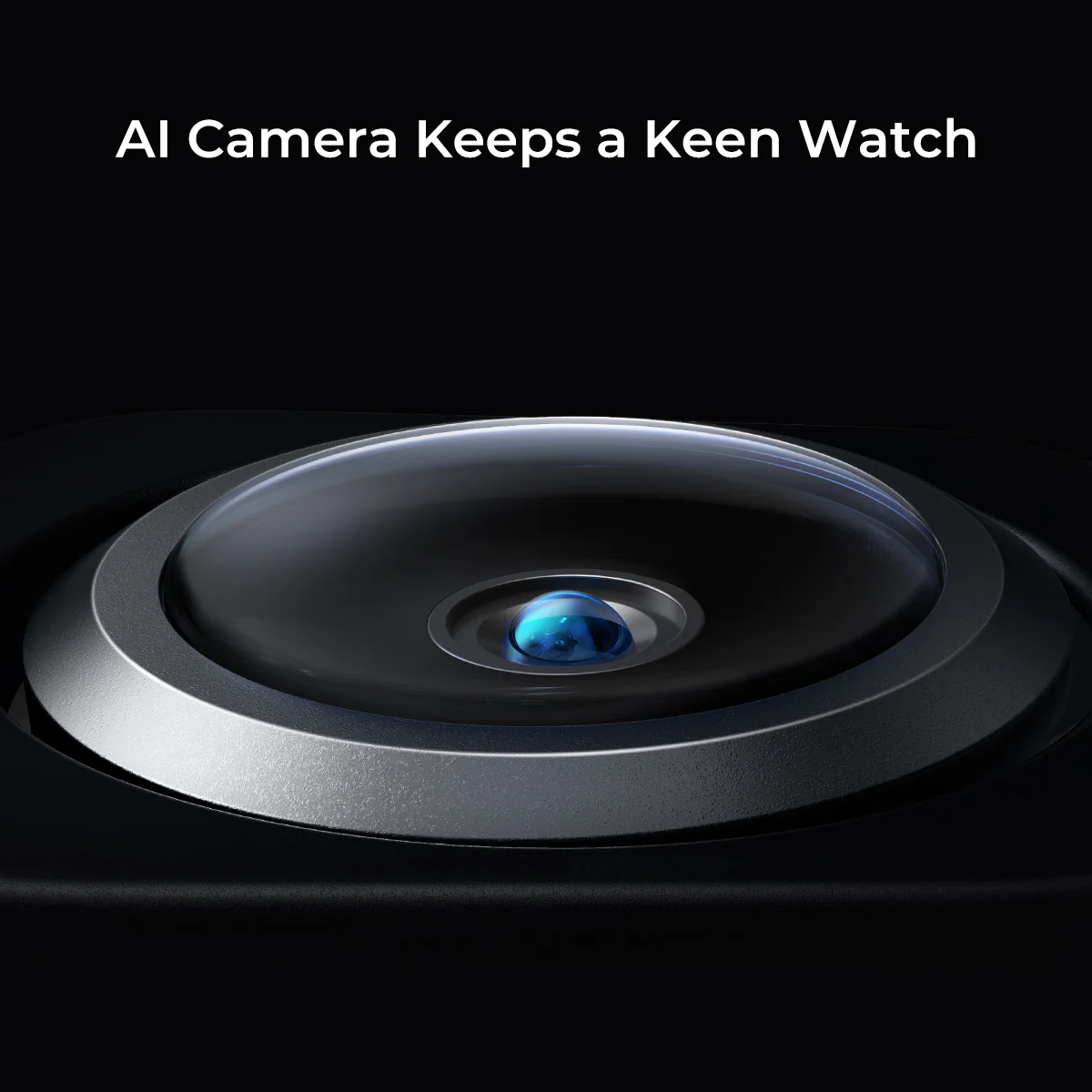

K1 Max uses an AI camera to watch over spaghetti failure, foreign objects, debris, etc. It will alert you when an error occurs.It also supports real-time monitoring and creates time-lapses for sharing.

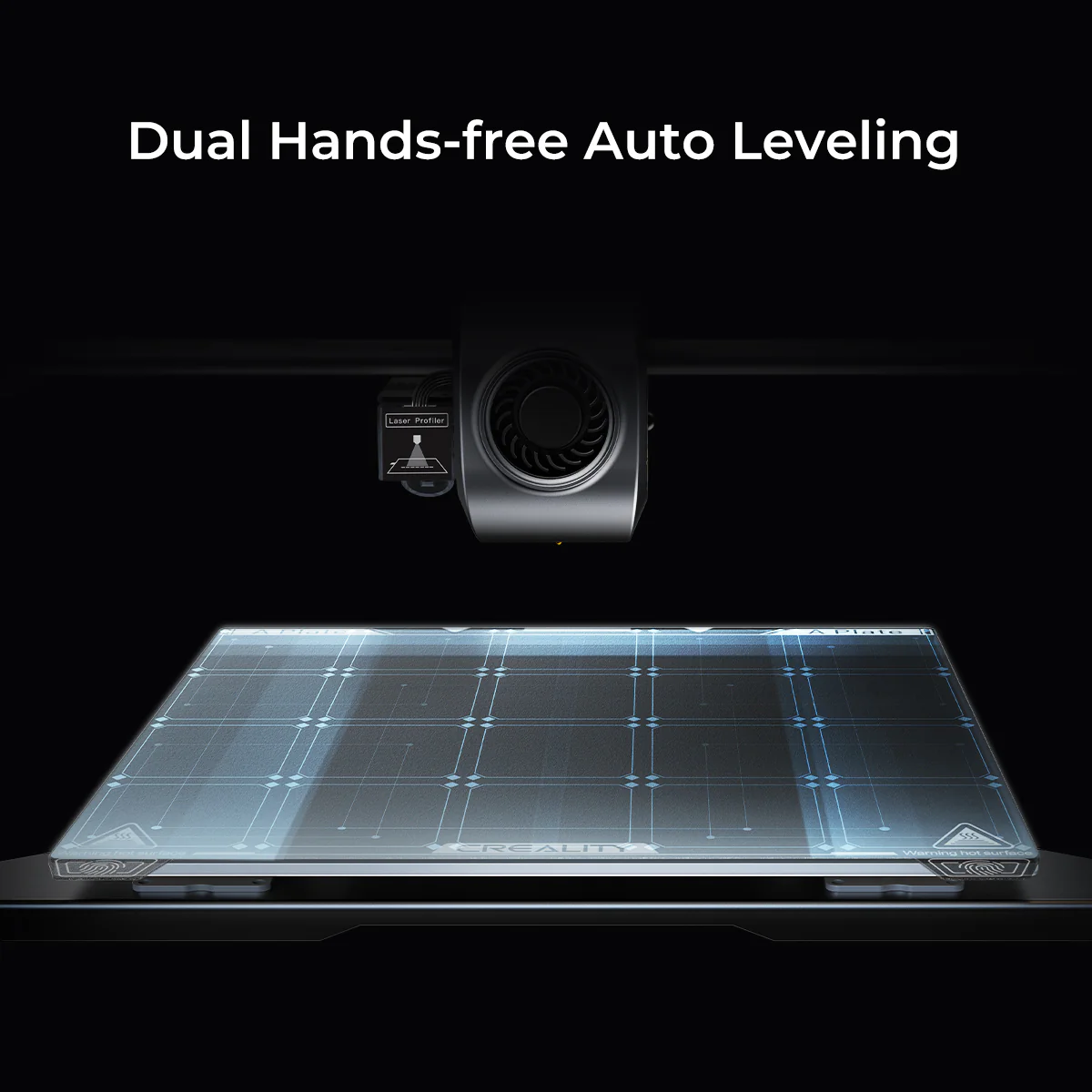

Still worry about the first layer? Just leave it all to the AI LiDAR of K1 Max.The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing and tell you immediately if something goes wrong.
A G-sensor in the printhead measures the resonance frequencies of high-speed printing, and auto-tune the printer to mitigate it. No more ghosting or ringing on the print.
Get a Call Back
Leave us your details our team will get in touch soon
TIMELAPSE: Creality K1 Max, CFS Color Mod, TURTLE
Creality K1 Max | See How AI Benefits 3D Printing
Creality K1 Max-2
Creality K1 Max-3
Creality K1 Max-4
Creality K1 Max-5
Creality K1 Max-6
Creality K1 Max-7
Creality K1 Max-8
Creality K1 Max-9
Creality K1 Max-1
| Printing Technology |
|
| Build Volume |
|
| Product Dimensions |
|
| Package Dimensions |
|
| Net Weight |
|
| Gross Weight |
|
| Printing Speed |
|
| Acceleration |
|
| Printing Accuracy |
|
| Layer Height |
|
| Extruder |
|
| Filament Diameter |
|
| Nozzle Diameter |
|
| Nozzle Temperature |
|
| Heatbed Temperature |
|
| Build Surface |
|
| File Transfer |
|
| Display Screen |
|
| Power Loss Recovery |
|
| Supported Filaments |
|
| Printable File Format |
|
| Slicing Software |
|
