Einstar Rockit

Einstar Rockit

Rock-it in your pocket

Key Feature:

  • Marker free laser scanning
  • True wireless without extra hub or adapter setup
  • 19+19 crossed laser lines
  • 7 parallel laser lines
  • optimized capability for deep-hole scanning

REQUEST QUOTE

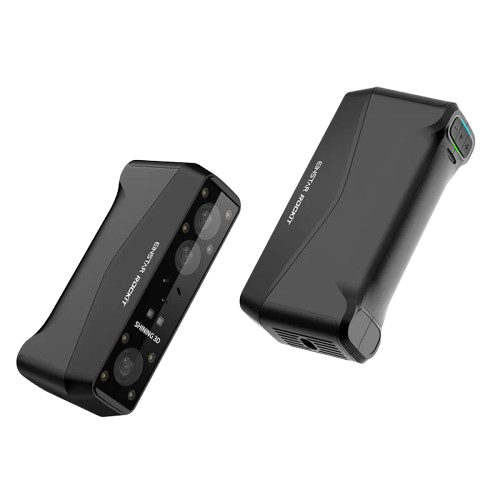

Meet Einstar Rockit

Einstar Rockit is a must-have wireless 3D scanner that brings pro-level performance to your palm. With a built-in Wi-Fi module and marker-free capability, it’s ready to scan whenever and wherever you are. Dual light sources, compact body, and now with smart audio feedback — Rockit makes 3D scanning simple and seamless.


  • Quick Links
  • Marker free laser scanning

    Skip the markers — scan feature-rich objects effortlessly Quick to set up, faster to get results.

  • Wireless inside freedom outside

    Built-in Wi-Fi module, without extra hub or adapter setup. True wireless without messy cables. Stable real-time sync to PC. Built-in, swappable battery with up to 3 hours runtime. Stay worry-free: cable connection available if Wi-Fi interference occurs

  • Blue laser

    38 laser lines (19 + 19 crossed laser lines) for fast, large-area capture. 7 parallel laser lines for fine features

  • Reliable performance on black and reflective surfaces

    Great material adaptability — works well on black and reflective surfaces without spray. Ideal for industrial parts like automotive components

Get a Call Back

Leave us your details our team will get in touch soon

Videos

How to get started with einstar rockit

How to get started with einstar rockit

Product Gallery

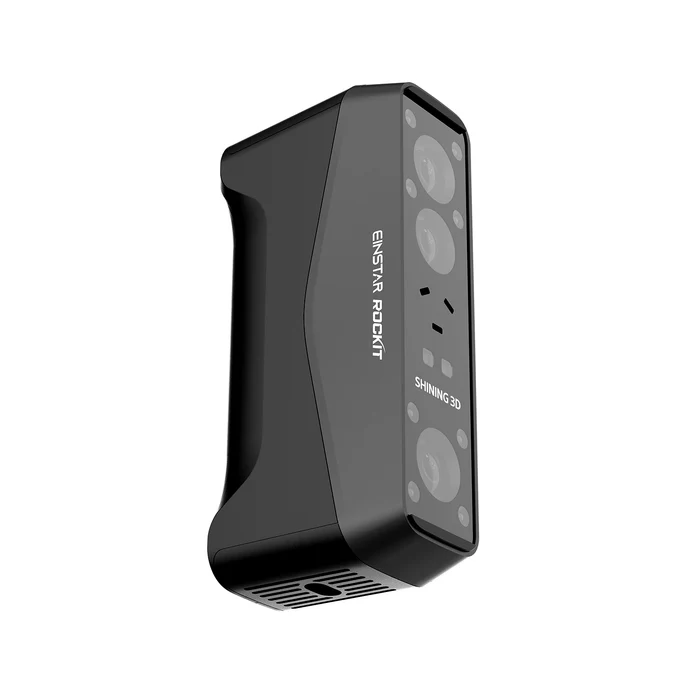

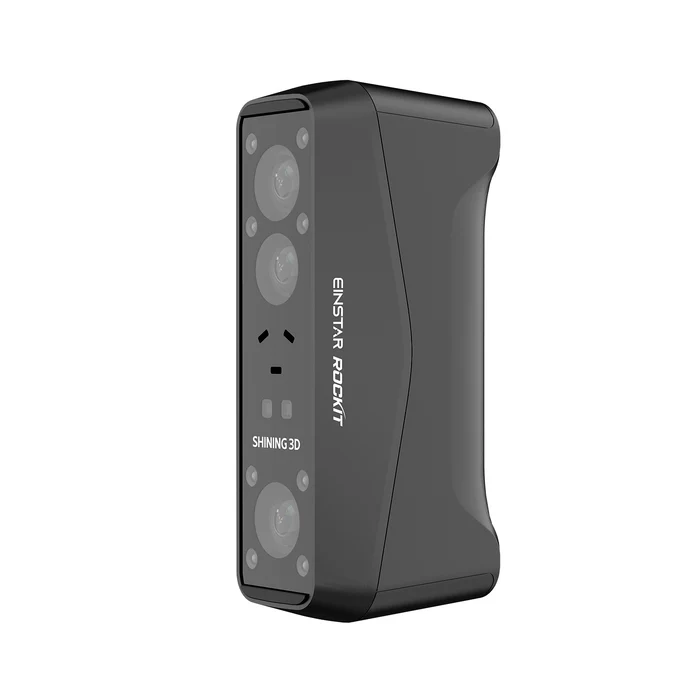

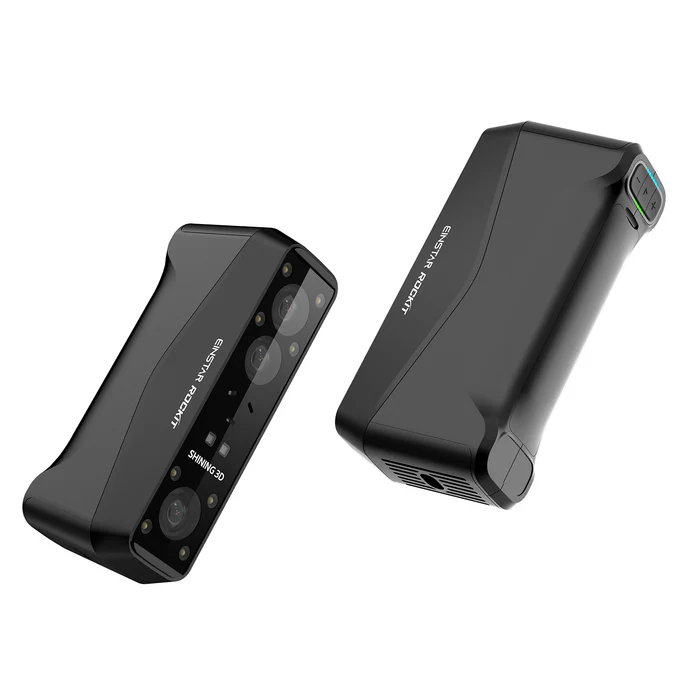

Einstar Rockit-1

Einstar Rockit-1

Einstar Rockit-2

Einstar Rockit-2

Einstar Rockit-3

Einstar Rockit-3

Einstar Rockit-4

Einstar Rockit-4

Detailed Specifications

Scanning Mode
  • Laser HD
  • IR Rapid
Light Source
  • 38 Laser Lines (19 + 19 Cossed Laser Lines) & 7 Blue Laser Parallel Lines
  • IR VCSEL
Resolution
  • 0.05 ~ 10 mm
  • 0.2 ~ 10 mm
Scanning Speed
  • 2,800,000 points/s
  • 1,440,000 points/s
Working Distance
  • 19 + 19 Cossed Laser Lines：100 ~ 600 mm
    7 Blue Laser Parallel Lines：100 ~ 400 mm
    IR Rapid：160 ~ 1400 mm
Max. FOV
  • 19 + 19 Cossed Laser Lines：545 x 620 mm
    7 Blue Laser Parallel Lines：355 x 425 mm
    IR Rapid：1170 x 1385 mm
Alignment Mode
  • Global Marker/Markers/Features
  • Global Marker/Markers/Features/Texture/Hybrid
Minimum Scan Volume
  • 5*5*5 mm
  • 50*50*50 mm
Camera Resolution
  • 3D: 2MP*2 ; Texture: 5MP
Laser Class
  • Class 2
Outdoor Scanning Environment
  • Below 110,000 Lux
  • Below 70,000 Lux
Operation Conditions
  • Temperature -10 ℃ ~ 40 ℃
Interface & Power Source
  • USB Type-C
    Battery: 5500mA*1
    Support 60W-PD 3.0 Charger
Dimension
  • (H*D*W) ：130 x 37 x 61 mm/ 5.12 x 1.46 x 2.40 in
Net Weight
  • 425g/0.94 lbs (BatteriesI included)
    353g/0.78lbs (Batteries Excluded)
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
