Unlocking the Power of Static and Dynamic Analysis in Engineering

In engineering and product development, one equation matters the most: Will this product design perform safely and efficiently in the real world? Answering this question early can save millions in development costs and prevent catastrophic failures. That is where static and dynamic analysis comes in the equation.

Let us explore what static and dynamic analysis means, how they differ, and how companies worldwide use them to build smarter, safer, and more reliable products.

Static Analysis: Understanding Steady-State Behavior

Static analysis focuses on how a system performs under steady or constant loads. It tells engineers if a material or structure can withstand forces without deforming or failing.

Applications of Static Analysis

  • Structural Analysis: Testing bridges, towers, and machines against steady forces like weight and pressure.
  • Thermal Analysis: Studying how heat spreads in devices such as electronic or engines.
  • Material Selection: Choosing cost-effective and durable materials by simulating stress limits.

Real-Time Examples

  • Civil Engineering: In the case of the Bandra-Worli sea link, static analysis helped engineers assess the bridges ability to withstand dead loads. Dead loads: The weight of the bridges, structure, including the pylons, cables, and road deck. Live loads: The weight of vehicles and other external forces, such as wind and seismic activity.
static analysis

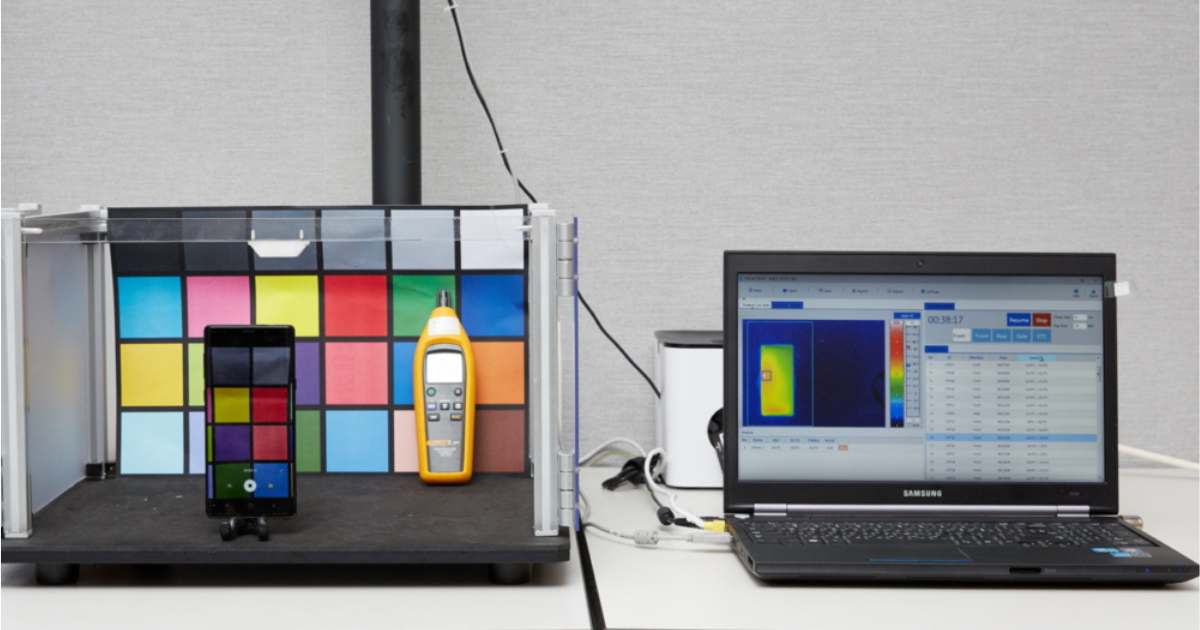

  • Electronics: In laptops and smartphones, static thermal analysis helps optimize heat sinks to prevent overheating. As pre samsung newrooms india, samsung devices are becoming smarter, the relationship between performance and heat is an important concern for the Reliability Test Group.When testing the smartphones, the team reproduces conditions of heavy usage, such as playing high-spec games and using resource-intensive apps, and measures the device’s heat levels with a thermal camera.The test monitors both where and how much heat is generated. The results of the test are sent back to the development team for them to adjust the product design accordingly.
electroinc

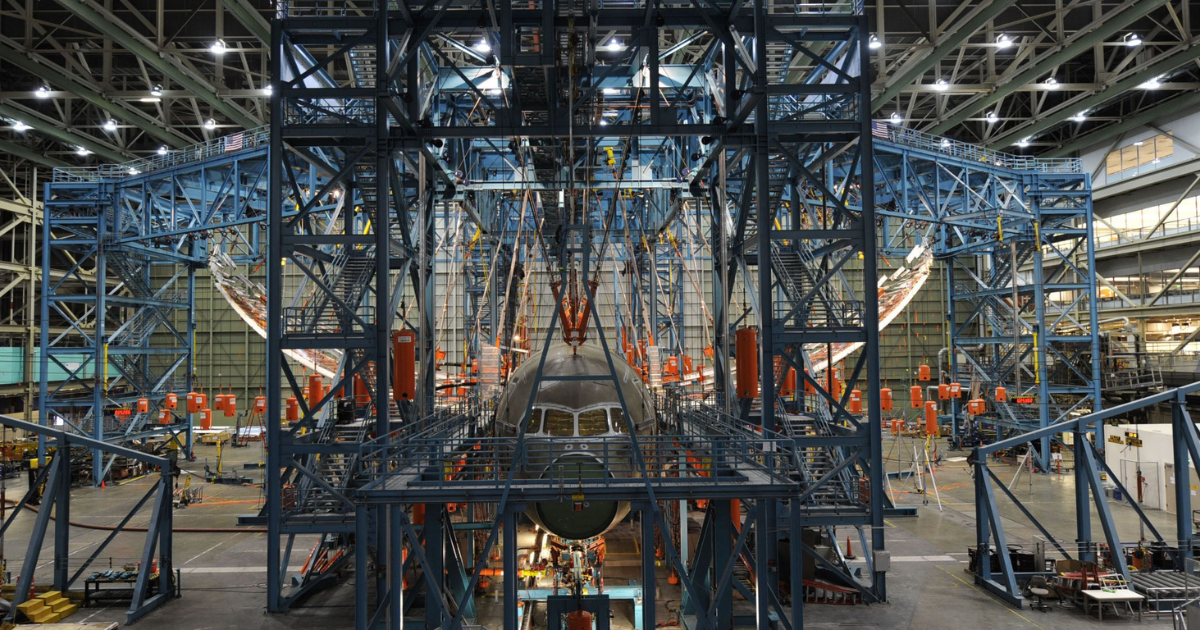

  • Aerospace: Airbus and Boeing rely on static analysis to test aircraft wings under high-altitude pressures, ensuring passenger safety while minimizing fuel-heavy weight. In the context of aircraft wing design, static analysis helps engineers assess the wing's ability to withstand various loads, including:

Aerodynamic forces: Lift and drag forces generated by airflow around the wing.
Structural loads: Weight of the wing, fuel, and other components.
Pressure loads: Forces exerted by air pressure differences between the upper and lower surfaces of the wing.

aerospace

Step-by-Step Process

  • Wing Modeling: Engineers make a detailed 3D model of the wing using CAD software. This model shows the shape, materials, and parts of the wing.
  • Load Calculation: Engineers figure out the different forces the wing will face during flight, like air pressure, weight, and structural stress.
  • Finite ElementAnalysis(FEA):They use FEA software to break the wing into small parts and check how much stress and straineach part experiences.
  • Stress and Strain Analysis: Engineers analysis at the FEA results to find where the wing might be under too much stress or strain. This helps them make sure the wing can handle the forces it will face.
  • Design Optimization: Using the analysis results, engineers change the wing's design to make it lighter without weakening it. They might adjust the shape, size, or materials of the parts.
  • Testing and Validation: The final wing design is tested on the ground and in flight to make sure it is safe and works as expected.

Dynamic Analysis: Simulating Real-World Conditions

While static analysis looks at steady forces, dynamic analysis studies how systems behave under time-dependent forces like vibrations, shocks, or repetitive loading. This is crucial for predicting failures in real-world scenarios.

Applications of Dynamic Analysis

  • Vibration Analysis: Prevents resonance and noise in engines, bridges, and machinery.
  • Impact/Crash Analysis: Simulates accidents, drops, and blasts to design safer structures.
  • Fatigue Analysis: Predicts how repeated stresses shorten a product’s lifespan.

Real-Time Examples

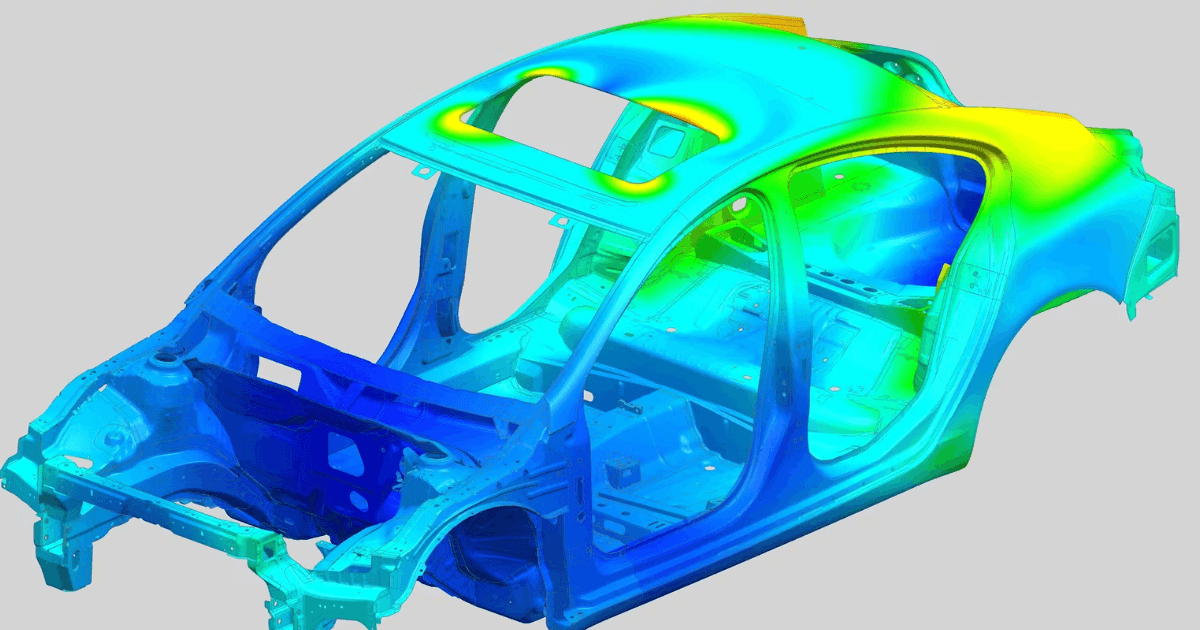

  • Automotive: Tesla and Tata Motors use dynamic crash simulations to test vehicle safety digitally before physical crash tests. This reduces costs and improves safety ratings.
automotive

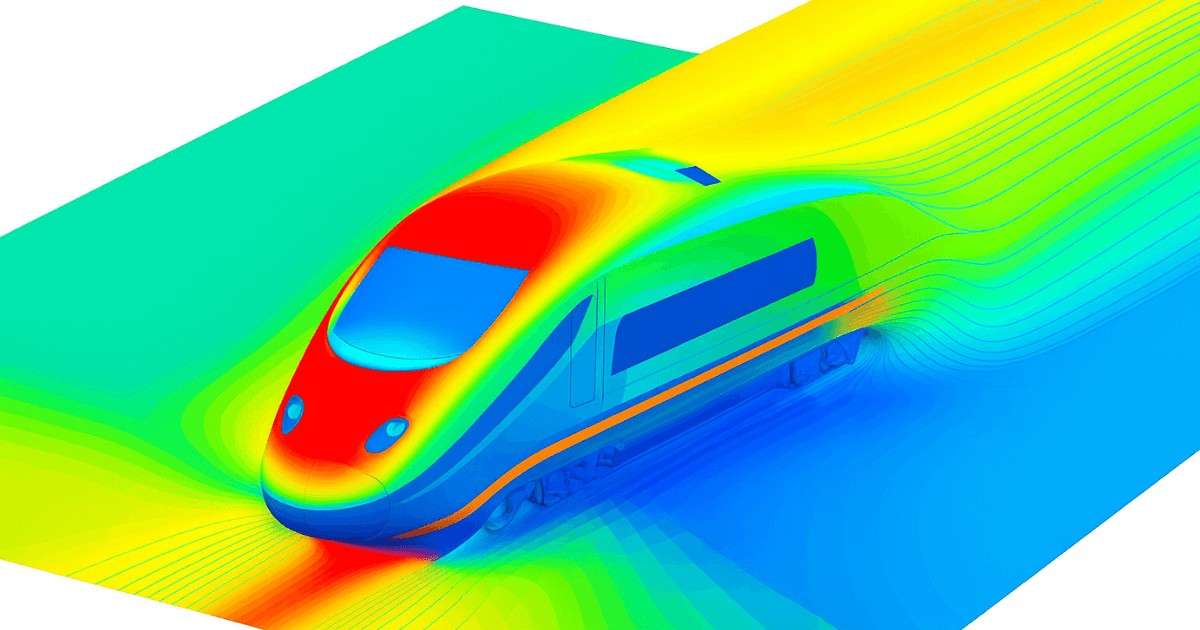

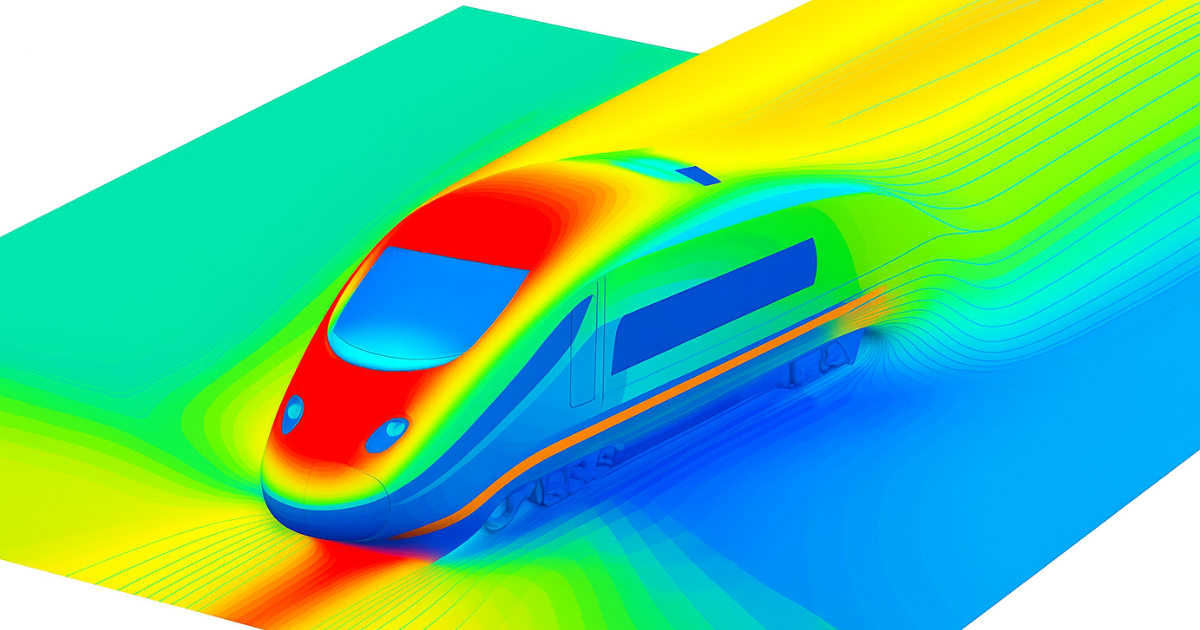

  • Railways: Dynamic vibration analysis was used in the Delhi Metro project to ensure underground tunnels and tracks could withstand train frequency without structural damage.
railway

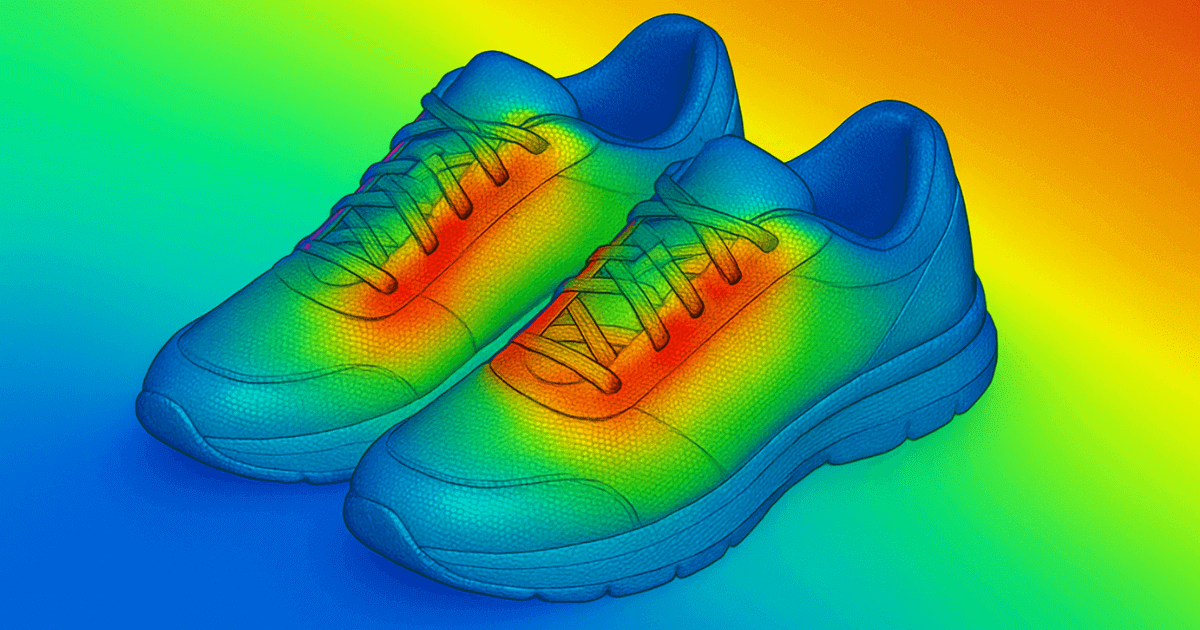

  • Consumer Goods: Companies like Nike use fatigue analysis on sports shoes to test how long soles and materials last under repetitive stress from running.
consumer goods

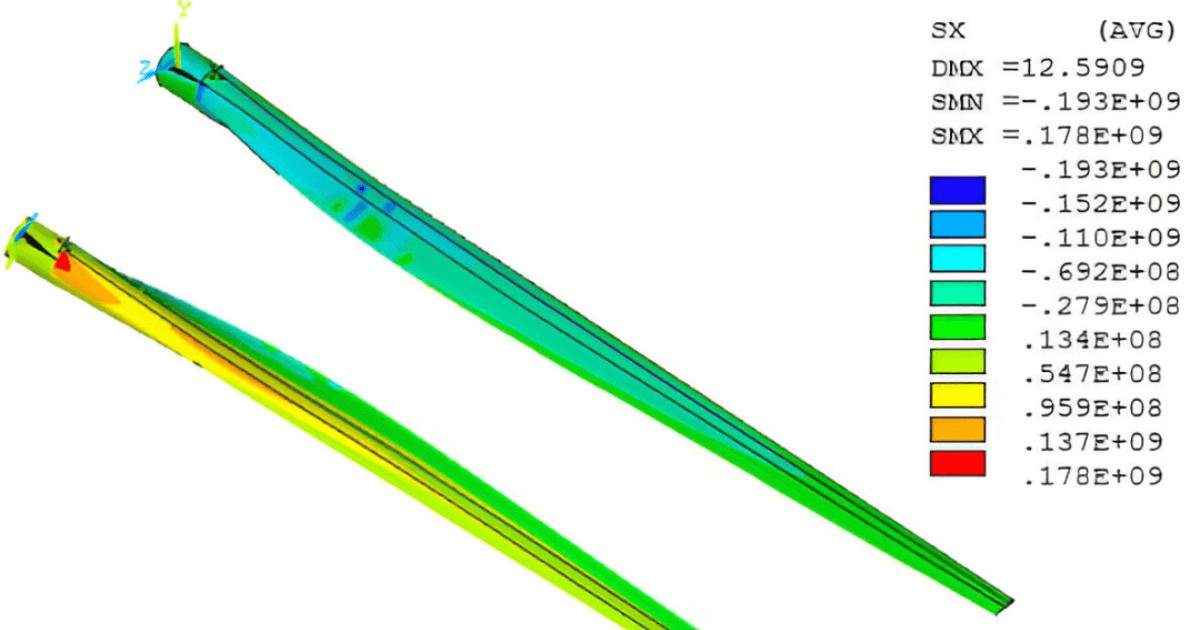

  • Energy: In wind turbines, dynamic analysis ensures blades can survive high-speed gusts, preventing catastrophic breakdowns.
energy

Static vs. Dynamic Analysis: When to Use Each

  • Use static analysis when loads are constant and predictable (e.g., bridges, pipelines, building foundations).
  • Use dynamic analysis when forces change with time or are unpredictable (e.g., car crashes, earthquakes, rotating machinery).
  • Together, they give a complete picture of product safety and performance.

The Benefits of Analysis in Engineering

  • Improved Safety: Prevents design flaws before products hit the market.
  • Lower Prototyping Costs: Reduces the need for multiple physical prototypes.
  • Enhanced Performance: Ensures efficiency, durability, and reliability.
  • Faster Time-to-Market: Speeds up development cycles through simulation-driven design.

Conclusion

From skyscrapers and smartphones to EVs and airplanes, static and dynamic analysis are at the heart of modern engineering. They give engineers the ability to predict performance, prevent failures, and deliver high-quality products at lower costs.
