In medical device manufacturing, components such as handles must meet extremely high standards of precision, durability, and ergonomics. A handle is a direct point of contact between the medical professional and the device, making its 3D CAD design and quality critical for safe and comfortable operation. When original 3D CAD design data is unavailable or 3D CAD design improvements are required, modern digital manufacturing methods become essential. At RA Global Tech Solutions, we follow a structured and highly accurate workflow using 3D scanning, 3D reverse engineering, 3D printing, and finishing to develop reliable medical device handles.
The process began with a detailed evaluation of the existing medical device handle provided by the client. Since no original 3D CAD data was available, we at RA Global Tech Solutions carefully studied the part’s geometry, functional interfaces, and usability features. Special attention was given to grip shape, finger positioning, mounting points, and load-bearing areas. As the handle was intended for medical use, factors such as ease of cleaning, operator comfort during prolonged use, and dimensional accuracy were considered from the very beginning. This initial assessment ensured that all functional and regulatory expectations were clearly understood before moving to the digitization stage.

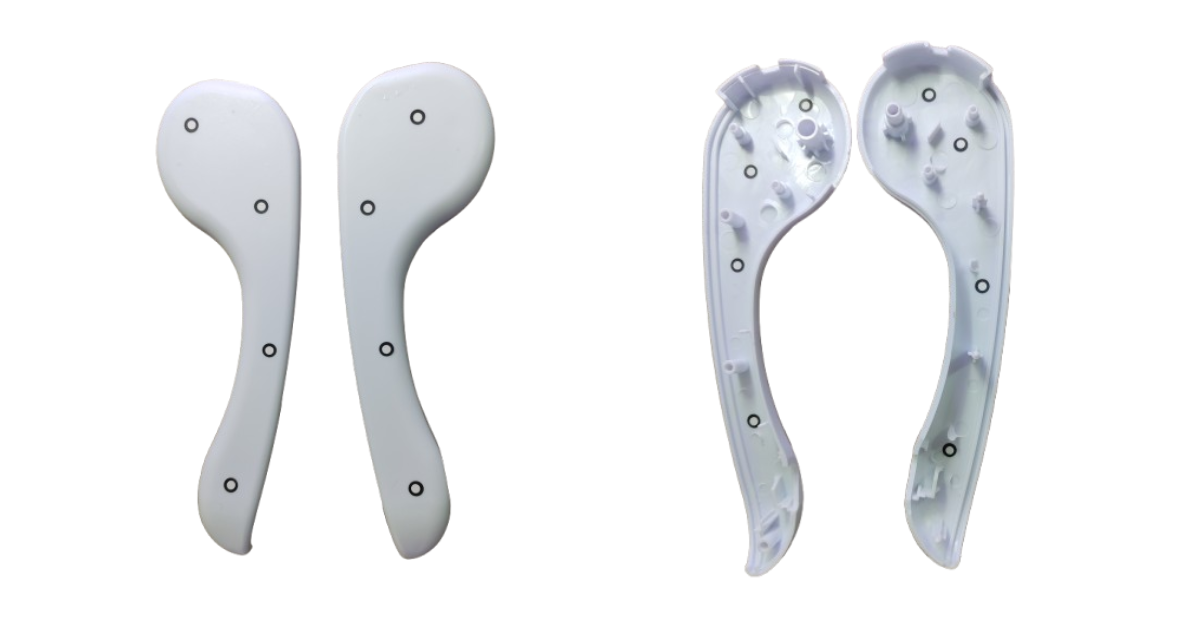

We at RA Global Tech Solutions used advanced high-resolution 3D scanning technology to digitally capture the complete geometry of the medical device handle. The 3D scanning process recorded millions of data points, accurately reproducing complex curves, contours, grooves, and ergonomic features that are difficult to measure using conventional tools. Both external surfaces and critical functional areas were 3D scanned to ensure dimensional fidelity. This non-contact 3D scanning method prevented any damage to the original part while producing a highly detailed digital representation, forming a reliable foundation for further engineering work.
Once the 3D scan data was captured, we at RA Global Tech Solutions performed reverse engineering to convert the raw mesh into a clean, fully parametric 3D CAD model. Our 3D CAD designer carefully aligned surfaces, rebuilt geometries, and corrected any wear or deformation present in the original handle. This step allowed improvements in wall thickness, structural strength, and dimensional consistency while maintaining the original ergonomic intent. Creating a parametric 3D CAD model also ensured that the 3D CAD design could be easily modified in the future for size adjustments, material changes, or 3D CAD design enhancements, providing long term value to the client.
After reconstructing the 3D CAD model, RA Global Tech Solutions optimized the handle's 3D CAD design specifically for medical applications. This included refining grip contours to reduce hand fatigue, improving transitions between surfaces for better comfort, and eliminating sharp edges for safe handling. 3D CAD design adjustments were also made to support hygienic requirements, such as smoother surfaces that are easier to clean and disinfect. Where required, internal geometry was optimized to improve strength while minimizing material usage, ensuring the handle could withstand repeated use in demanding medical environments.

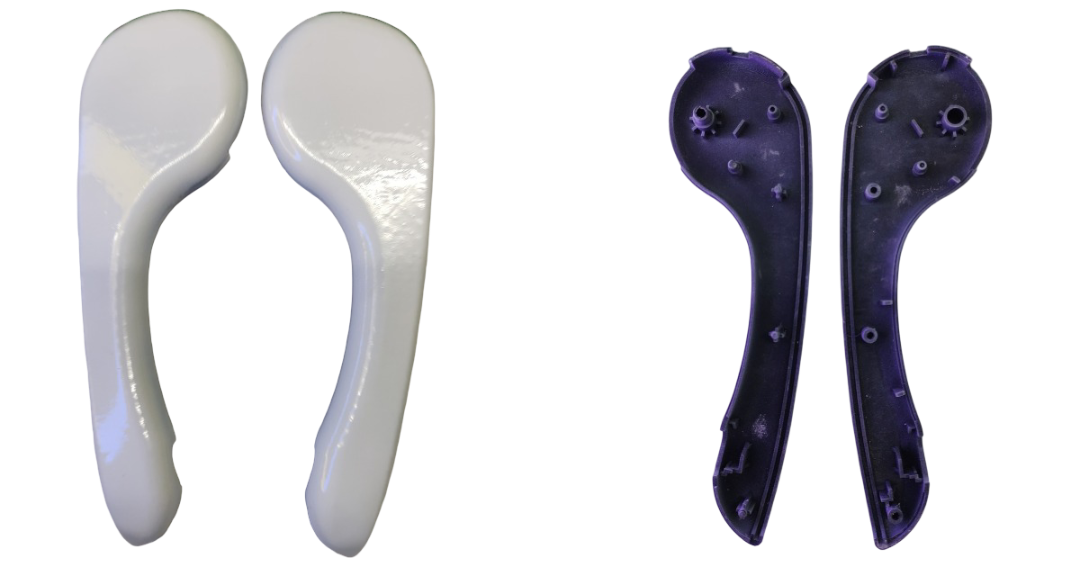

With the optimized 3D CAD model finalized, RA Global Tech Solutions produced the handle using industrial grade 3D printing. This approach enabled rapid prototyping with high dimensional accuracy, allowing the client to physically evaluate the handle before final production. Material selection was carefully considered to match functional requirements such as strength, rigidity, and resistance to handling stresses.

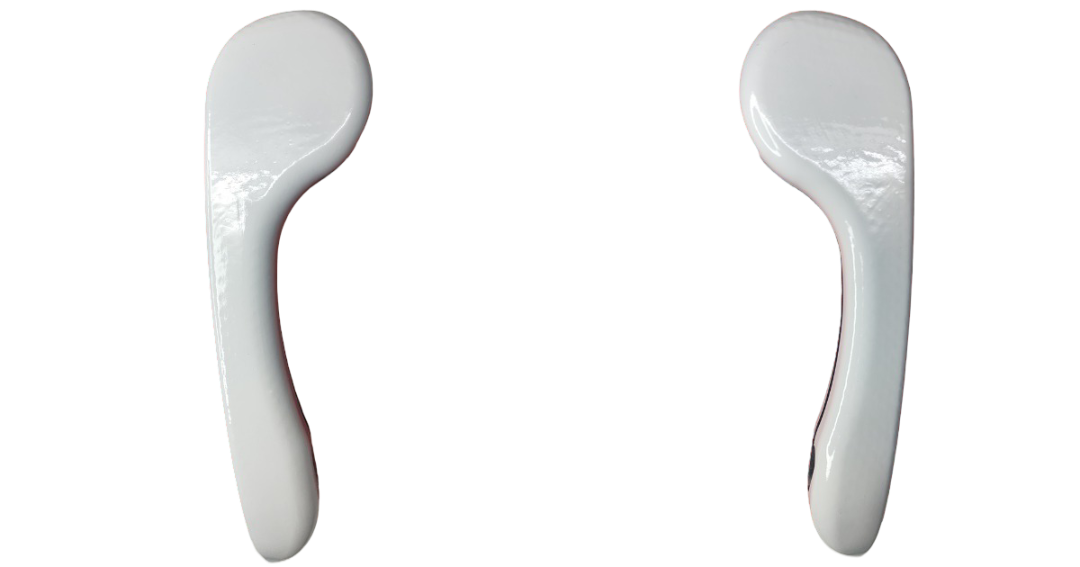

Medical components require superior surface quality for both functional and hygiene reasons. After 3D printing, RA Global Tech Solutions applied professional post processing and finishing techniques to the handle. This included surface smoothing to remove visible 3D print layers, refining edges to ensure safe handling, and achieving a uniform surface texture. The finishing process enhanced the overall appearance of the handle while also preparing it for cleaning, sterilization, or additional coatings if required. The result was a clean, professional grade component suitable for medical use.
Before final delivery, the finished handle underwent thorough quality checks to ensure dimensional accuracy, surface quality, and proper fit with the medical device assembly. RA Global Tech Solutions verified that all critical features met the required specifications and that the handle performed as intended during handling and operation. Once approved, the final part and complete 3D CAD data were delivered to the client, enabling easy reproduction or future modifications.
By following a well defined digital manufacturing workflow, RA Global Tech Solutions successfully developed a high quality medical device handle that met functional, ergonomic, and quality expectations. The combination of 3D scanning, reverse engineering, 3D printing, and professional finishing allowed accurate replication and improvement of the original 3D CAD design while reducing development time and cost. RA Global Tech Solutions continues to support medical device manufacturers with reliable, precise, and efficient engineering solutions.
