Creality RaptorX

Creality RaptorX

World's 1st Wireless Hybrid Blue Laser and NIR Scanner

Key Features:

  • Wireless Hybrid Blue Laser & NIR 3D Scanner
  • 34+7 Blue Laser Lines
  • Wireless Handle for Data Transmission
  • Lightning-fast Wi-Fi 6 & easy-to-connect USB Type-C connection.
  • Metrology-grade Accuracy up to 0.02mm
  • Objects between 5-4000mm

REQUEST QUOTE

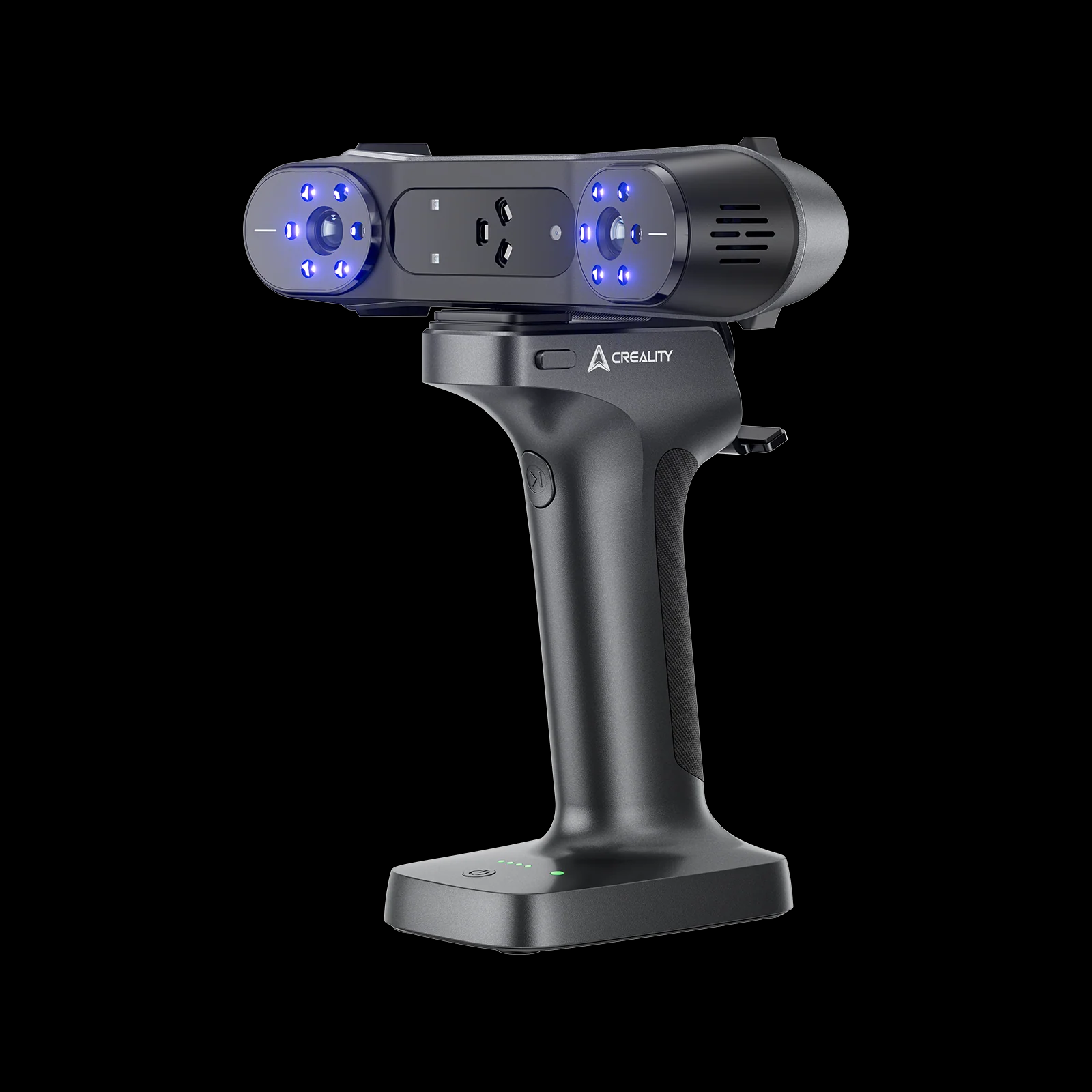

Portable Wireless Scanner

RaptorX features a wireless handle seamless data transmission, redefining portability in blue laser 3D scanning. Equipped with One-Shot 3D imaging technology, the Creality RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

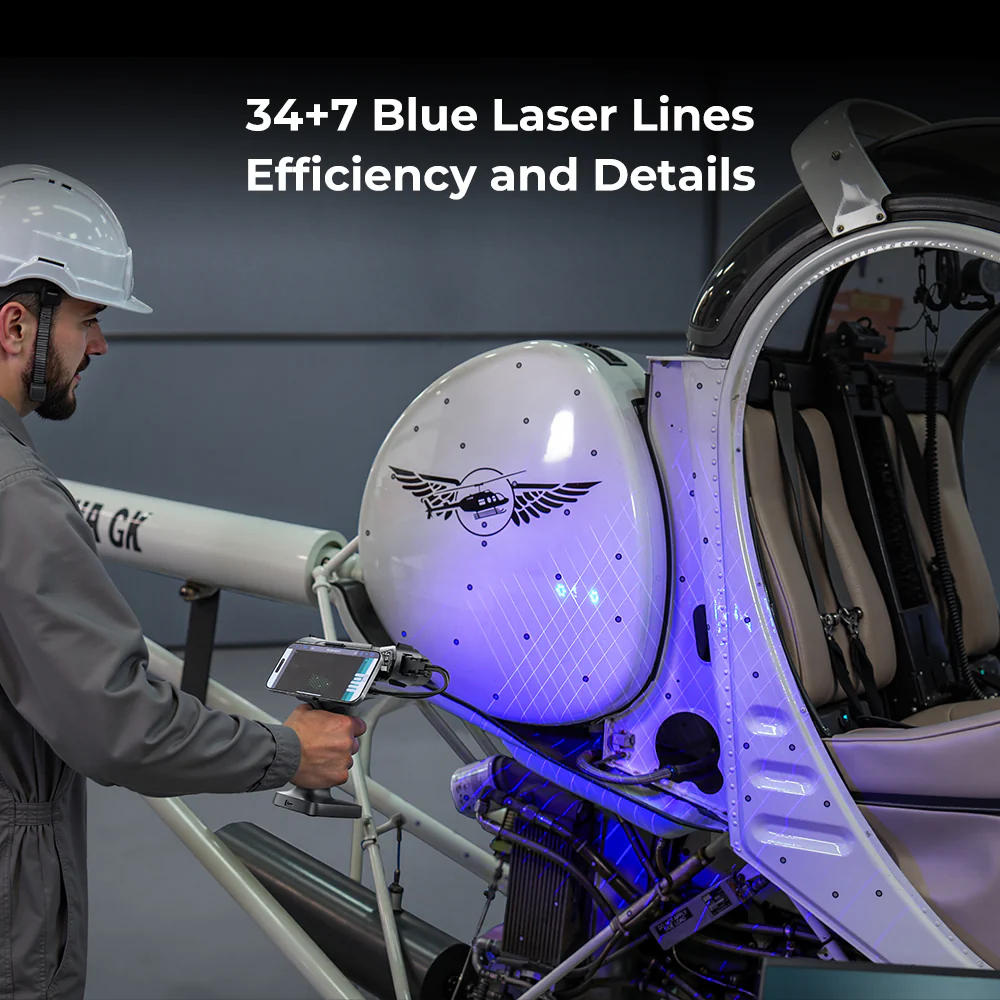

  • 34+7 Blue Laser Lines Efficiency and Details

    34 cross laser lines for scanning medium to large objects quickly, with the advanced laser line encoding and decoding algorithm to handle denser multi-beam lasers. 7 parallel laser lines for partial HD scanning, improves both the efficiency and details of 3D Scanning

  • 34 Cross Laser Lines

    Easily and Quickly Scan Medium to Large Objects with reliable accuracy.Scanning a whole car in One Go. The laser array arrangement enables rapid and effortless capture of complete and accurate 3D data from medium to large objects.

  • 7 Laser Lines for Partial HD Scanning

    Each laser line is as fine as 0.1mm, capturing sharper edges and richer details . Equipped with a 2.3-megapixel 3D imaging camera, it scans and restores fine details with high accuracy.

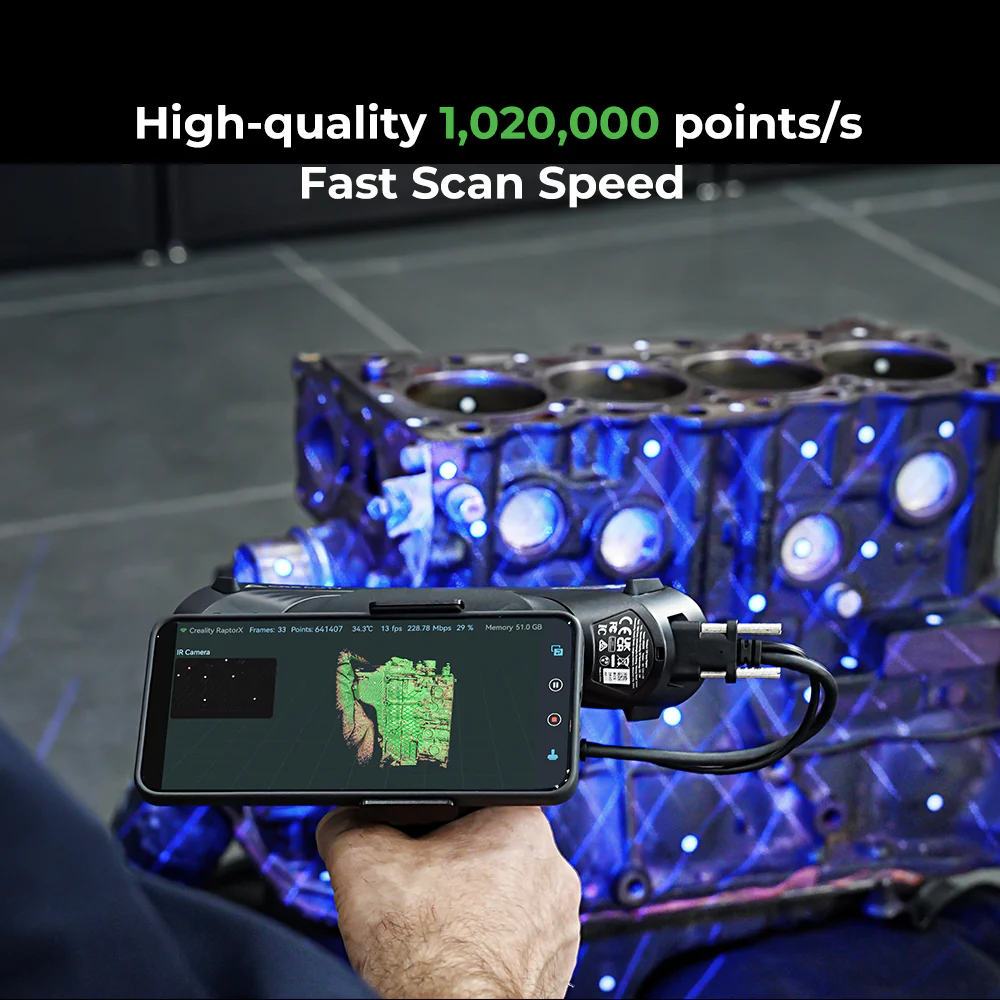

  • High-quality 1,020,000 points/s Fast Scan Speed

    The 34 cross laser lines can process up to 1,020,000 points per second, making it ideal for quickly scanning medium to large objects.

  • Wi-Fi 6 AX6000 Fast Data Transmission

    Equipped With advanced lossless data compression algorithm, RaptorX allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to the your computer.

  • Large Capacity & Fast Charging

    Charges to 80% in just 1.5 hours, making outdoor scanning more convenient and worry-free. Large capacity 35400mWh battery (Airplane Safe).

Get a Call Back

Leave us your details our team will get in touch soon

Videos

Product Gallery

Detailed Specifications

Scanning Mode
  • 7 Blue Parallel Laser Lines
  • 34 Blue Parallel Laser Lines (cross)
Accuracy up to
  • 0.02mm
  • 0.05mm
Volumetric Accuracy
  • 0.02mm+0.06mm/m
  • 0.05mm +0.1mm/m
Scanning rate
  • 420,000 measurements/s
  • 1,020,000 measurements/s
Single Capture Range
  • 270mmx170mm @300mm
  • 397mm x 290mm @500mm
Working distance
  • 150-400mm
  • 200-600mm
Outdoor Scanning
  • ≤ 50,000 lux
  • ≤100,000 lux
System Support
  • Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above
    Minimum:i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory
    macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above
Wireless Scanning
  • Support
  • Support
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
