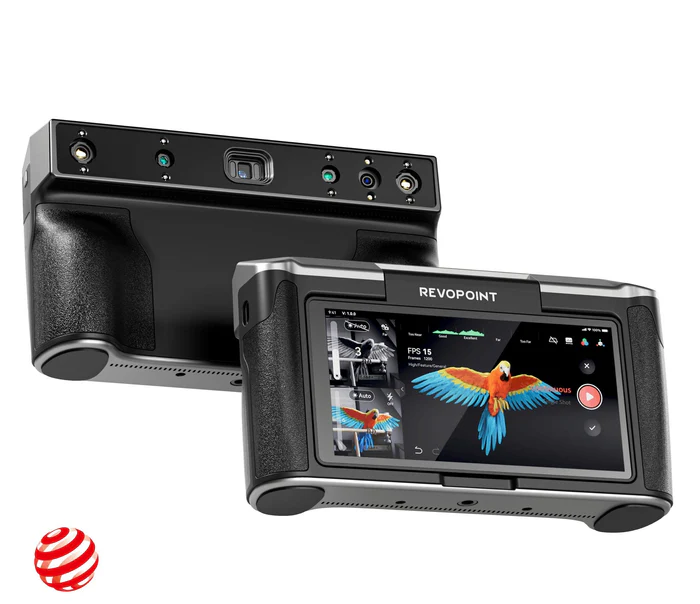

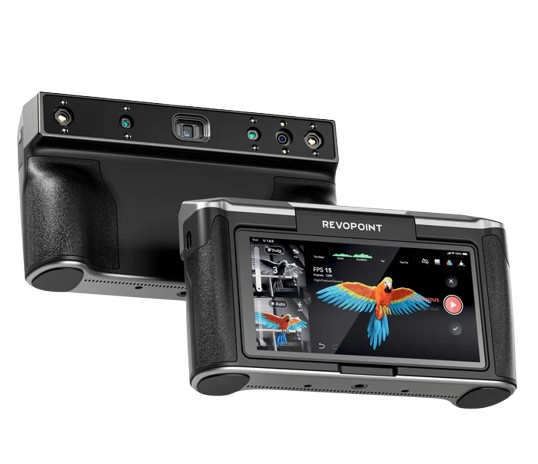

Revopoint Miraco 3D Scanner

Revopoint Miraco 3D Scanner

Standalone 3D Scanner for Small to Large Objects Scanner.

Key Feature:

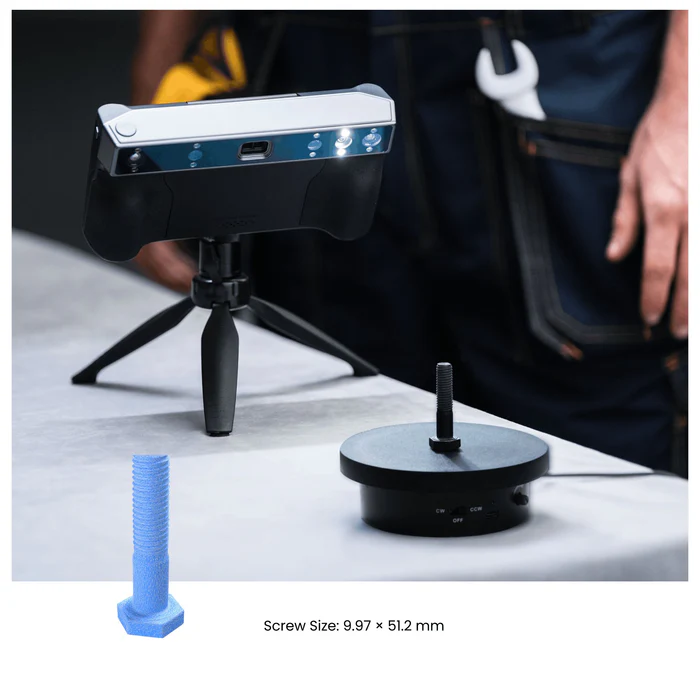

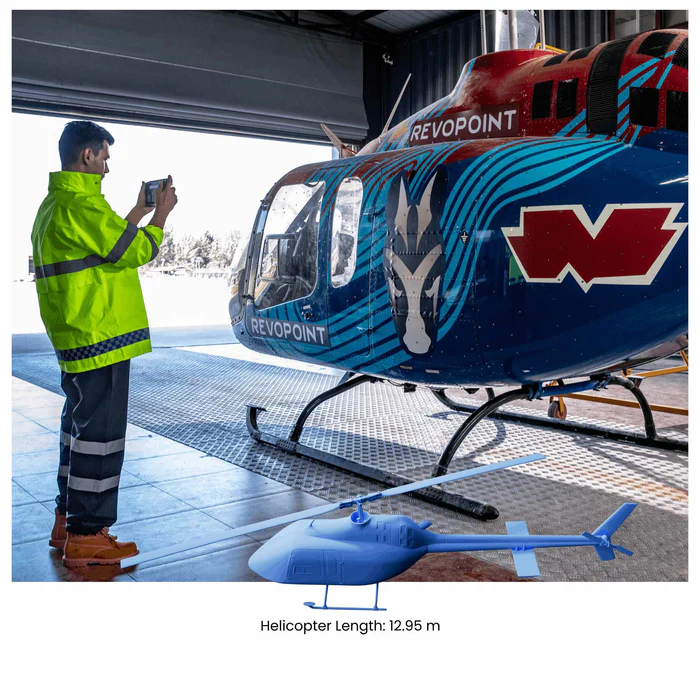

  •  Big and Small Object Scanning
  •  Single-shot & Continuous Modes
  •  Up to 0.02 mm precision, 0.05 mm accuracy
  •  48 Megapixel RGB Camera
  •  Up to 2 hours of Scanning

REQUEST QUOTE

All-in-one Scanning

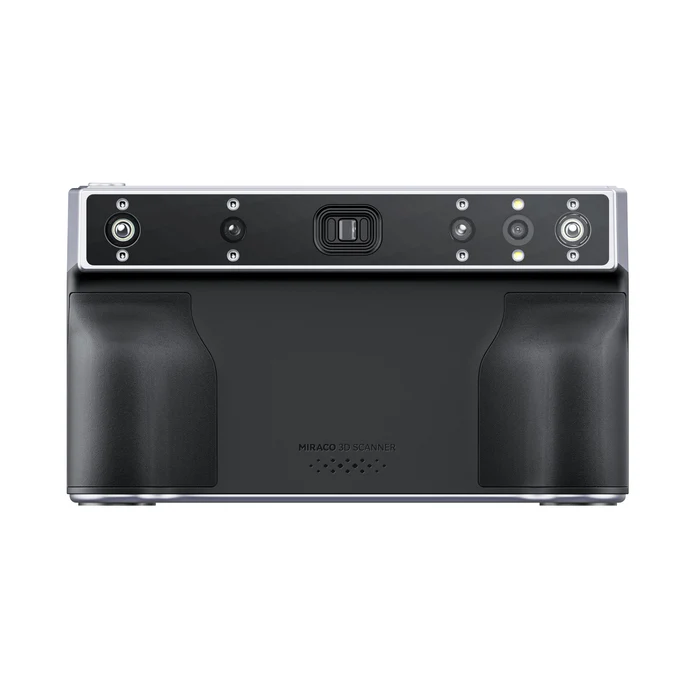

Introducing first standalone 3D scanner, the Revopoint MIRACO. It’s ready to support all your professional scanning needs. Whether you want to capture small or large items, its quad-Depth Camera system can do it all.

  • Surgical Accuracy

    Switch mid-scan between capturing fine detail with a single-frame accuracy of up to 0.05 mm or capturing large areas with a single-frame accuracy of up to 0.3 mm.

  • Scanning Portal

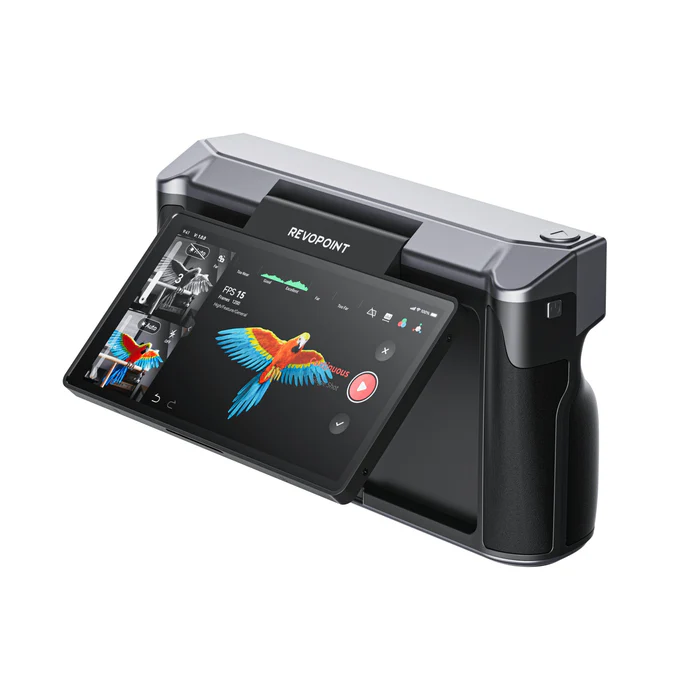

    See your scans with crystal clarity on MIRACO's 6” 2k backlit AMOLED touch-sensitive screen. Its 180° adjustable screen allows easy viewing from any angle and can flipped for selfie scans.

  • Eye-popping Color

    Create eye-catching colored 3D models with MIRACO’s 48-megapixel RGB Camera.

  • Two Capture Modes

    Single-shot Mode: Single-shot mode's single-frame capture makes it easier to scan in hard-to-maneuver environments and reduces point cloud overlap for increased accuracy. Continuous Mode: Efficiently capture objects at fast up to 15 fps scanning speeds.

  • Long Scans, Fast Charging

    Recharge MIRACO to 80% in only 35 mins with 65W fast charging.

  • No Cables, No PC Needed

    Transfer your scans quickly and conveniently over MIRACO’s lightning-fast Wi-Fi 6 or easy-to-connect USB Type-C connection.

  • Powerful On-board Software

    The onboard software’s intuitive UI makes capturing and post-processing your model a breeze. Perform fusion, meshing, and editing on the go to check the model before exporting your scans in PLY, OBJ, STL, ASC, 3MF, GLTF or FBX.

Get a Call Back

Leave us your details our team will get in touch soon

Videos

Product Gallery

Detailed Specifications

Technology
  • Quad-camera Infrared Structured Light

Single-frame Accuracy
  • 0.05 mm

Fused Point Distance
  • 0.05 mm

Single Capture Area at Nearest Distance
  • 28 x 53 mm at 100 mm

Single Capture Area at Furthest Distance
  • 975 x 775 mm at 1000 mm

Two Capture Modes
  • Single-shot Mode
    Continuous Capture Mode
Scanning Speed
  • 15 fps

Minimum Scan Volume
  • 10 x 10 x 10 mm

Maximum Scan Volume
  • 4000 x 4000 x 4000 mm

Working Distance
  • 100 - 1000 mm

Screen
  • 6” 2k AMOLED Touch Screen

Auxiliary Lighting
  • Infrared Fill Lights, Flash LEDs

3D Light Source
  • Class 1 Infrared Light

Storage
  • 256 GB eMMC

Position Sensors
  • 9-axis IMU

Memory (RAM)
  • 16 GB or 32 GB DDR4 (32GB only in MIRACO Pro)
RGB Camera Resolution
  • 48 Megapixels

Scanner Weight
  • 750 g

Dimensions(L x W x H)
  • 200 x 50 x 110 mm

Battery Capacity
  • Internal lithium Battery 5,000mAh, supporting up to 2-hour continuous scanning
CPU
  • 8-core CPU,2.4 GHz

Tracking Methods
  • Feature, Marker, Global Marker
Protection Rating
  • IP45

Connector Type
  • USB Type-C

Wi-Fi Type
  • Wi-Fi 6

Compatible Operating Systems
  • Windows 10/11 (64-bit), macOS 11.0 or better

Special Object Scanning
  • Use scanning spray for transparent, dark, or highly reflective objects.
Built in Chip Computing
  • Depth Map Computing, 3D Scanning, Point Cloud Processing and Editing
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
