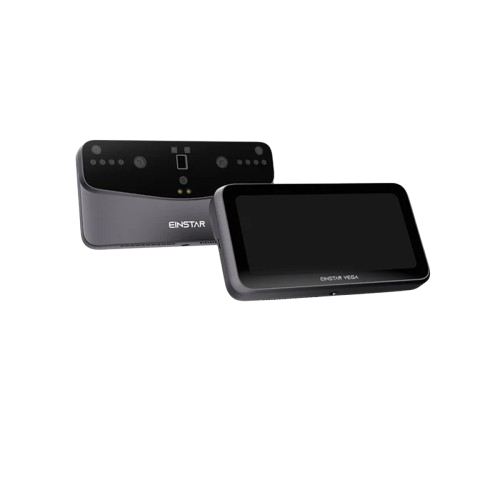

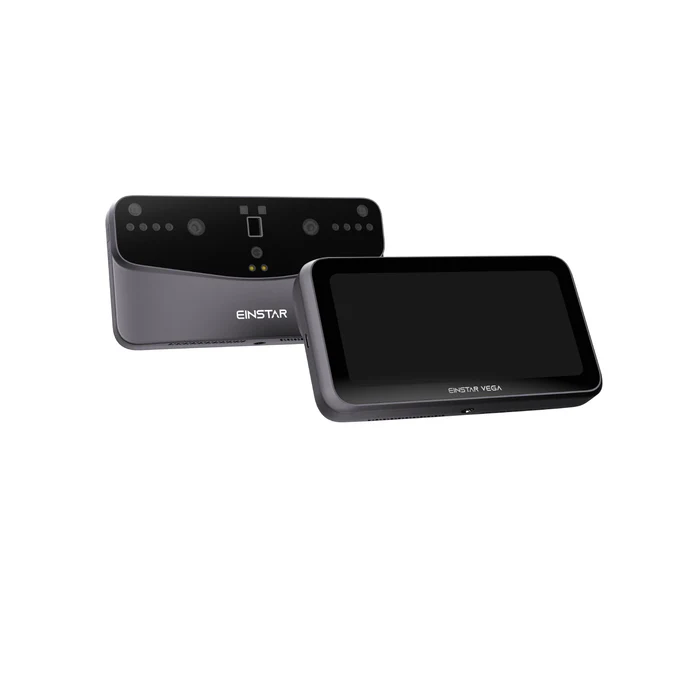

Einstar Vega 3D Scanner

Einstar Vega 3D Scanner

Wireless All-In-One 3D Scanner

Key Feature:

  • Two Scanners in One: VCSEL+ MEMES
  • Wireless Scanning & Screen Casting & Cloud Sharing

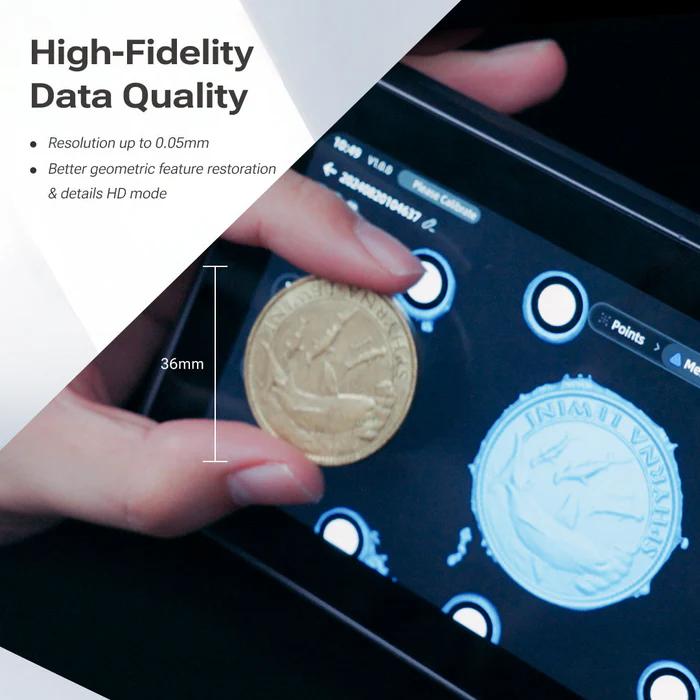

  • 0.05mm High Resolution & 48MP High Quality Texture
  • 32GB Built-in Computing & 512GB SSD Internal Data Archiving

REQUEST QUOTE

Einstar Vega 3D Scanner

Einstar, powered by Shining 3D with over 20 years of expertise in high-precision 3D digital products, inherits SHINING 3D's gene of innovation and advanced technology to push the boundaries of 3D scanning. Committed to making high-quality products accessible to every 3D explorer, EINSTAR is dedicated to unleashing the possibilities of each shining idea.

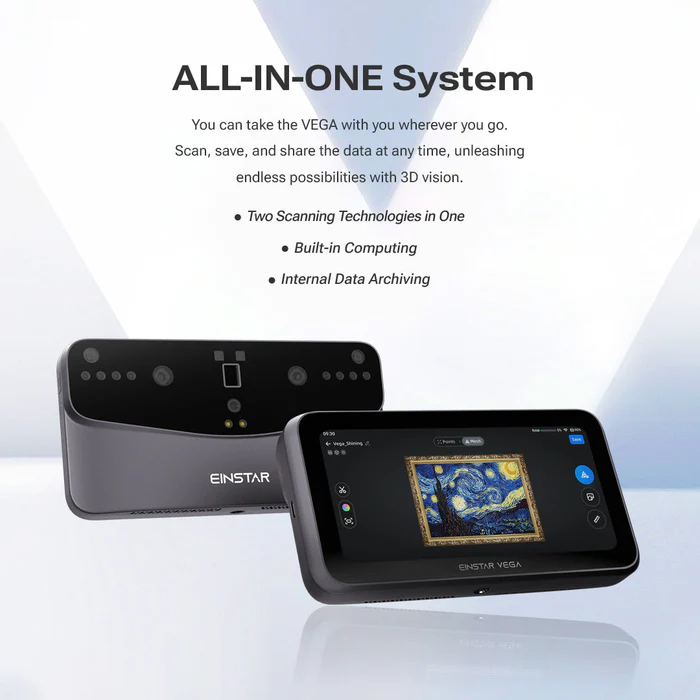

  • All-in-One System

    You can take the VEGA with you wherever you go. Scan, save, and share the data at any time, unleashing endless possibilities with 3D vision. Two scanning technologies in one Built-in computing Internal data archiving

  • Two 3D Scanners in One

    VCSEL for long range scanning: smooth scanning under unlimited environment MEMS for short range scanning: stable scanning for high-detail data

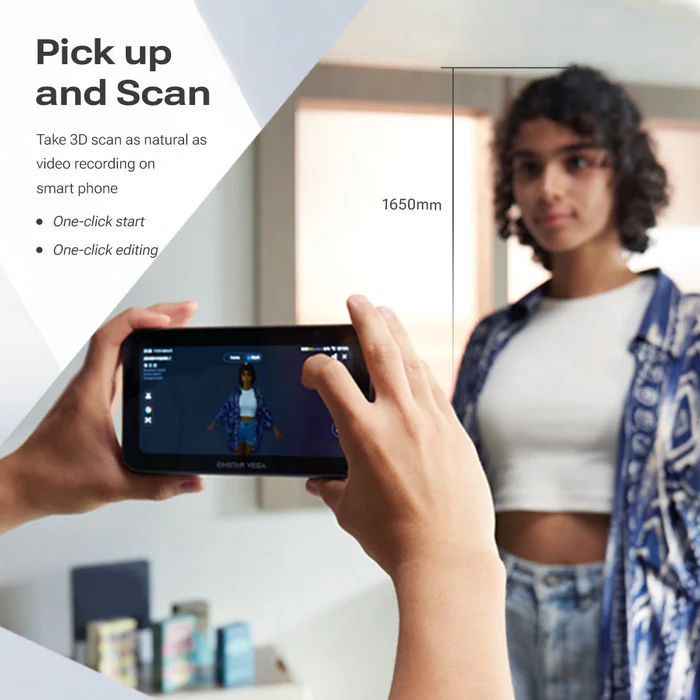

  • Pick Up and Scan

    Ergonomic design One-click start One-click processing

  • Wireless Solution

    Wireless scanning: Without connecting to PC Wireless transfer: Data sharing to SHINING 3D Cloud Wireless screen casting: Display on a second screen

  • Pioneering Software Features

    12mm markers alignment in fast mode: Minimize markers numbers when scanning super large objects Hybrid alignment: Enhance tracking stability and efficiency Scanning rewind: Support to correct data alignment error during scanning process Auto detecting the base plane Coordinate system adjustment Model measurement

  • Fast Mode

    For medium to large size objects Working distance 350~1500 mm for medium to large objects Scanning speed up to 20 fps

Get a Call Back

Leave us your details our team will get in touch soon

Videos

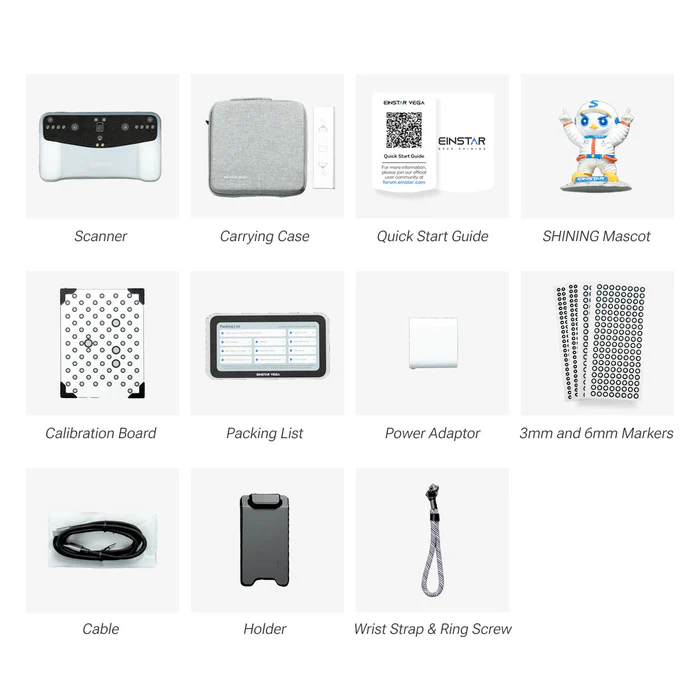

Product Gallery

Detailed Specifications

Scan Mode
  • HD Mode
    Fast Mode
Light Source
  • HD Mode: Infrared MEMS
    Fast Mode: Infrared VCSEL

Point Distance
  • HD Mode: 0.05mm~3mm
    Fast Mode: 0.5mm~10mm
Capture Frame
  • HD Mode: up to 15 fps
    Fast Mode: up to 20fps

Working Distance
  • HD Mode: 100-350mm
    Fast Mode: 270-1500mm

IR Camera Resolution
  • HD Mode: 2MP
    Fast Mode: 1.3MP

Align Mode
  • Feature; Texture; Markers; Hybrid

Color Camera Resolution
  • 48 MP

Output Formats
  • ply; stl; obj; asc

Outdoor Scan
  • Yes

Scanner Body Weight
  • Limited edition : 643g;
    Regular edition : 535g

Scanner Size
  • 180mm*95mm*26.5mm (L*W*H)

CPU
  • 8-core CPU, 2.4GHz

RAM
  • 32 GB LPDDR4 Memory

Internal Hard Drive
  • 32GB eMMC + 512GB SSD

Power Charger
  • 65W fast charging, supports PD/PPS protocols

Interface
  • Wi-Fi 6, USB Type C

Touchscreen
  • 6.4'' 2K OLED

Supplemental Light
  • 10

IMU
  • 6 DoF

Operating Temperature Range
  • -10~40℃

Operating Humidity Range
  • 0 to 90% RH (non-condensing)

Packing Size
  • 380*305*155mm

Protection Grade
  • IP50
Battery
  • Built-in 5000mAh;
    External power bank charging supported

Supported OS
  • No computer required for 3d scanning operation;
    StarVision(Data processing program on PC):Windows10/11(64-bit); macOS
    Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip )
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
