Eagle LiDAR Scanner

Eagle LiDAR Scanner

Turning views into data, reality into virtuality.

Key Feature:

  • 8K Ultra Imaging
  • Up to 140m Scan Range
  • Up to 2cm Accuracy
  • All-in-one Workflow

REQUEST QUOTE

Introducing 3DMakerpro Eagle

Eagle is 3DMakerpro's high-performance spatial scanner, combining high precision, wide coverage, and user-friendly operation. Designed for professionals seeking efficiency and accuracy, Eagle offers an end-to-end solution from data acquisition to 3D production, enabling large-scale 3D scene modeling within minutes. Whether for architectural surveying, film production, or virtual exhibitions, Eagle streamlines the entire process into a one-stop experience.

  • Quick Links
  • High-Performance Spatial Scanning

    Eagle is equipped with a high-performance LiDAR system, delivering extensive scanning capabilities while ensuring exceptional precision and coverage angles.

  • Entering the Era of Colorful Scanning

    Eagle comes with up to four 48MP high-resolution cameras, enabling the creation of highly detailed 3D worlds, making it ideal for applications like film production, game development, and virtual exhibitions.

  • All-in-one Scanning Solution

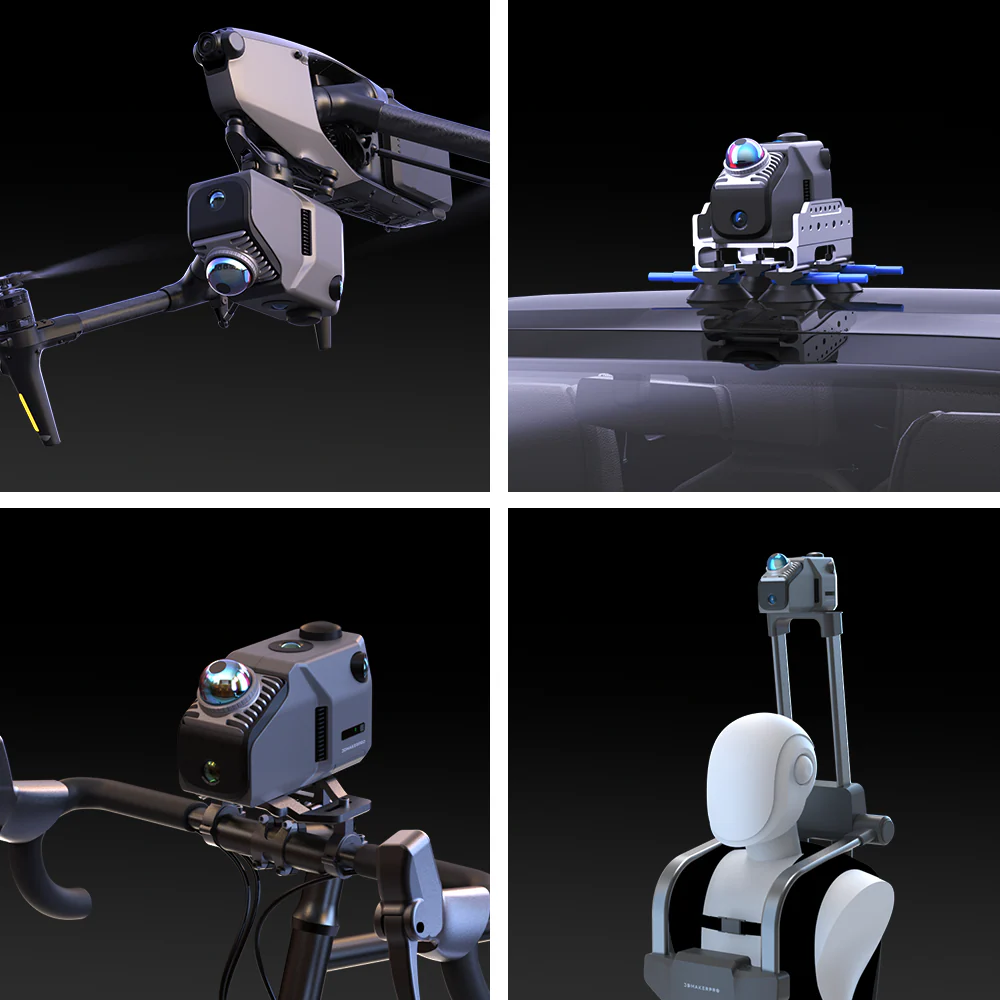

    Eagle is ready to use right out of the box, allowing users to start scanning immediately. It supports real-time point cloud project browsing and is adaptable for use on various platforms and vehicles.

  • Platform and Software

    Whether it’s architectural surveying, film production, or virtual exhibitions, Eagle’s workflow and companion software ensure a seamless experience from point cloud capture to final presentation.

Get a Call Back

Leave us your details our team will get in touch soon

Videos

3DMakerPro LiDAR 3D Scanner - EAGLE Max

3DMakerPro LiDAR 3D Scanner - EAGLE Max

3DMakerpro Eagle LiDAR Scanner with Backpack Kit

3DMakerpro Eagle LiDAR Scanner with Backpack Kit

Inside vs outside with the Eagle LiDAR Scanner

Inside vs outside with the Eagle LiDAR Scanner

Introducing Eagle LiDAR Series - Turning Views

Introducing Eagle LiDAR Series - Turning Views

Product Gallery

Eagle LiDAR Scanner-1

Eagle LiDAR Scanner-1

Eagle LiDAR Scanner-2

Eagle LiDAR Scanner-2

Eagle LiDAR Scanner-3

Eagle LiDAR Scanner-3

Eagle LiDAR Scanner-4

Eagle LiDAR Scanner-4

Eagle LiDAR Scanner-5

Eagle LiDAR Scanner-5

Eagle LiDAR Scanner-6

Eagle LiDAR Scanner-6

Detailed Specifications

Accuracy
  • 2cm@10m; 3cm@20m; 5cm@40m
Scan Radius
  • 40–70m (measured at >10% or >80% reflectivity)
Scan Range
  • 80–140m
Scan Angle
  • Horizontal 360°, Vertical 59°
Point Cloud Frequency
  • 200,000 points/second
Laser Light Source
  • 905nm
Eye Safety
  • Class 1 (IEC60825-1:2014)
HDR Mode
  • Supports 3–5 EV
Color Texture
  • Max Edition:4×48MP fisheye cameras
    Standard Edition:1×48MP fisheye camera
Image Quality Output
  • 8K Panoramic Color Output
Data Interface
  • USB-Type C ×2
Network Support
  • Wi-Fi5
Screen
  • 3.5"
Output Formats
  • 3D Color Point Cloud (PLY); 3D Gaussian Splatting (PLY); 3D Colored Polygonal Model (OBJ); 3D Panoramic Tour Data (OBJ)
Built-in Battery
  • 12,000mAh (supports 1 hour of work; external power supply supported)
Dimensions
  • 115 × 181 × 106 mm
Weight
  • 1.5 kg
Configuration
  • 8 Cores @ 2.4GHz, 32GB (TF card expansion supported)
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
