Creality Sermoon S1 3D Scanner

Creality Sermoon S1 3D Scanner

Versatile to the core, accurate evermore.

Key Features

  • Multi-Light Versatility: 1 + 7 + 34 Blue Lasers+ NIR for superior detail capture in any condition.
  • High Precision & Efficiency: 0.02mm + 0.08mm/m volumetric accuracy.
  •  Wide Range & Adaptability: Scans 5mm to 4000mm objects.
  • Smart Intelligence: AI-powered software + Seamless CAD/CAM/3D printing integration
  • User-Friendly Design : Perfect outdoor & indoor performance.

REQUEST QUOTE

Smart Stabilization for a Smoother Scan

Powered by an AI-driven temperature compensation algorithm and an efficient thermal management system, the Sermoon S1 maintains stable output even during prolonged sessions. Its One-Shot 3D imaging technology ensures higher tracking stability, effectively minimizing frame drops and misalignment caused by hand movement, significantly improving overall scanning accuracy and efficiency.

  • Quick Links
  • Multi-Light Versatility

    1 + 7 + 34 Blue Lasers+ NIR

  • High Accuracy

    Volumetric Accuracy: 0.02mm + 0.08mm/m

  • High Efficiency

    Scanning Speed up to 90 FPS Larger FOV for Fasten Scanning of Large Objects Innovative 4-Lens NIR Structured Light Enables Efficient, Marker-Free Scanning of Medium to Large Objects.

  • Versatile Size Scanning

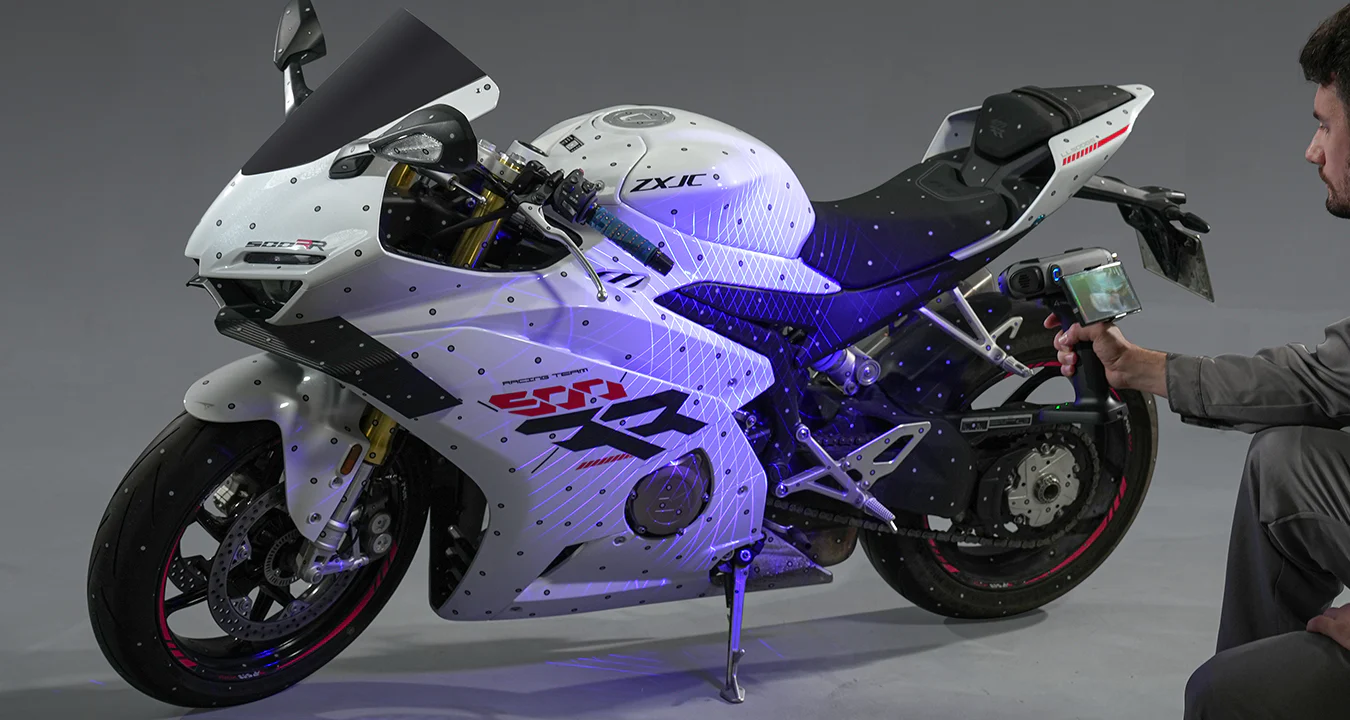

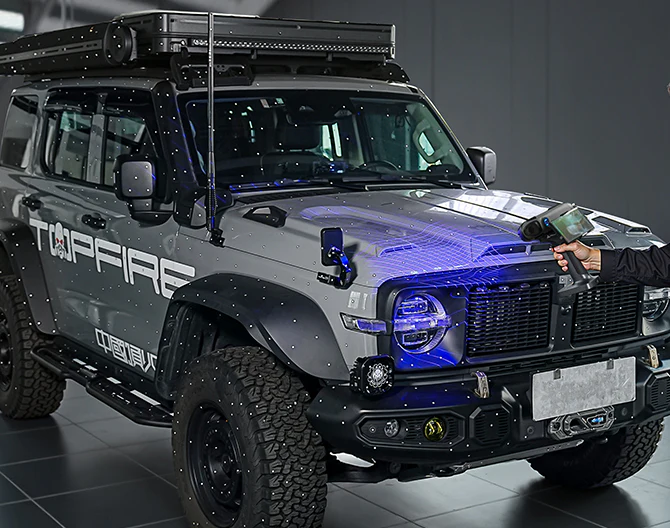

    Scan objects ranging from 5 mm to 4000 mm (from Coins to Entire Vehicles)

  • Reveal deep holes, narrow gaps, and recessed areas

    Equipped with a precise single-line blue laser and an optimized optical path, the Sermoon S1 excels at scanning deep holes, narrow gaps, and recessed areas-capturing intricate details in hard-to-reach spaces with uncompromising accuraccy.

Get a Call Back

Leave us your details our team will get in touch soon

Videos

Creality Sermoon S1-Precision & Performance

Creality Sermoon S1-Precision & Performance

Creality Sermoon S1-Unboxing

Creality Sermoon S1-Unboxing

Introduce Creality Sermoon S1 Scanner

Introduce Creality Sermoon S1 Scanner

Creality Sermoon S1 3D Scanner: Unlock Precision

Creality Sermoon S1 3D Scanner: Unlock Precision

Product Gallery

Creality Sermoon S1-1

Creality Sermoon S1-1

Creality Sermoon S1-2

Creality Sermoon S1-2

Creality Sermoon S1-3

Creality Sermoon S1-3

Creality Sermoon S1-4

Creality Sermoon S1-4

Creality Sermoon S1-5

Creality Sermoon S1-5

Creality Sermoon S1-6

Creality Sermoon S1-6

Detailed Specifications

Scanning Mode
  • Single Blue Laser Line
  • 7 Parallel Blue Laser Lines
  • 34 Cross Blue Laser Lines
  • Close-Range Infrared Structured Light
  • Long-Range Infrared Structured Light
Accuracy
  • Up to 0.02mm[1]
  • Up to 0.075mm
Volumetric Accuracy
  • 0.02mm+0.08mm/m
  • 0.075mm+0.1mm/m
Scanning rate
  • 108,000 measurements/s
  • 756,000 measurements/s
  • 1,428,000 measurements/s
  • 4,600,000 measurements/s
3D Resolution
  • 0.05-2mm
  • 0.1-2mm
Scanning Speed
  • Up to 90fps
  • Up to 30fps
Min. scan volume
  • 5mm x 5mm x 5mm
  • 150mm x 150mm x 150mm
Single Capture Range
  • 205mm x 147mm@200mm
    293mm x 217mm@300mm
    355mm x 289mm@400mm
    417mm x 361mm@500mm
    506mm x 433mm@600mm
  • 293mm x 217mm @300mm
    417mm x 361mm @500mm
  • 689mm x 375mm @500mm
    1245mm x 754mm @1000mm
Working distance
  • 200mm-600mm
  • 150mm-400mm
  • 200-600mm
  • 170mm-500mm
  • 200mm-1200mm
Color Mapping
  • Yes
Alignment mode
  • Marker / Global Marker
  • Marker / Global / Geometry / Texture
Color Supplemental Light
  • 12 White LEDs
Outdoor Scanning
  • Below 100,000 lux
  • Below 50,000 lux
  • Below 100,000 lux
  • Below 30,000 lux
Marker Recognition Enhancement
  • 12 Blue LEDs / 12 White LEDs
Laser Safety
  • Class II (eye safe)
  • Class I (eye safe)
  • Class II (eye safe)
  • Class I (eye safe)
Device Weight
  • 508g
Size
  • 225mm×53mm×76mm
Calibration board
  • High-precision glass calibration board
Wireless Scanning
  • Supported in Conjunction with Wireless Scanning Accessories
System Support
  • Windows/macOS
    Android/iOS (Requires Wireless Scanning Accessories)
Computer Configuration Requirements
  • Windows:
    The following or higher configurations are recommended: i7-Gen10 CPU, Nvidia GPU (8GB VRAM), 32GB RAM, Windows 10/11 (64-bit) Minimum configuraiton: i7-Gen7 CPU, Nvidia GPU (6GB VRAM), 16GB RAM, Windows 10/11 (64-bit)
    macOS:
    M1/M2/M3/M4 series, 16GB RAM
Operating temperature
  • -10°C to 40°C
Operating humidity
  • 10-90%RH
* Accuracy is evaluated in laboratory conditions and actual results may be affected by operating environments such as vibration, temperature, and other factors.
