Creality Raptor Pro 3D Scanner

Experience fast 3D scanning with the Creality Raptor Pro

Key Features:

22 Cross Laser Lines & 7 Parallel Laser Lines & NIR Structured Light
High Scanning Speed Up to 60fps 660,000 points/s and 60 Fps under laser scan mode
Volumetric Accuracy 0.02mm+0.08mm/m
Objects between 0.2-157" / 5-4000mm

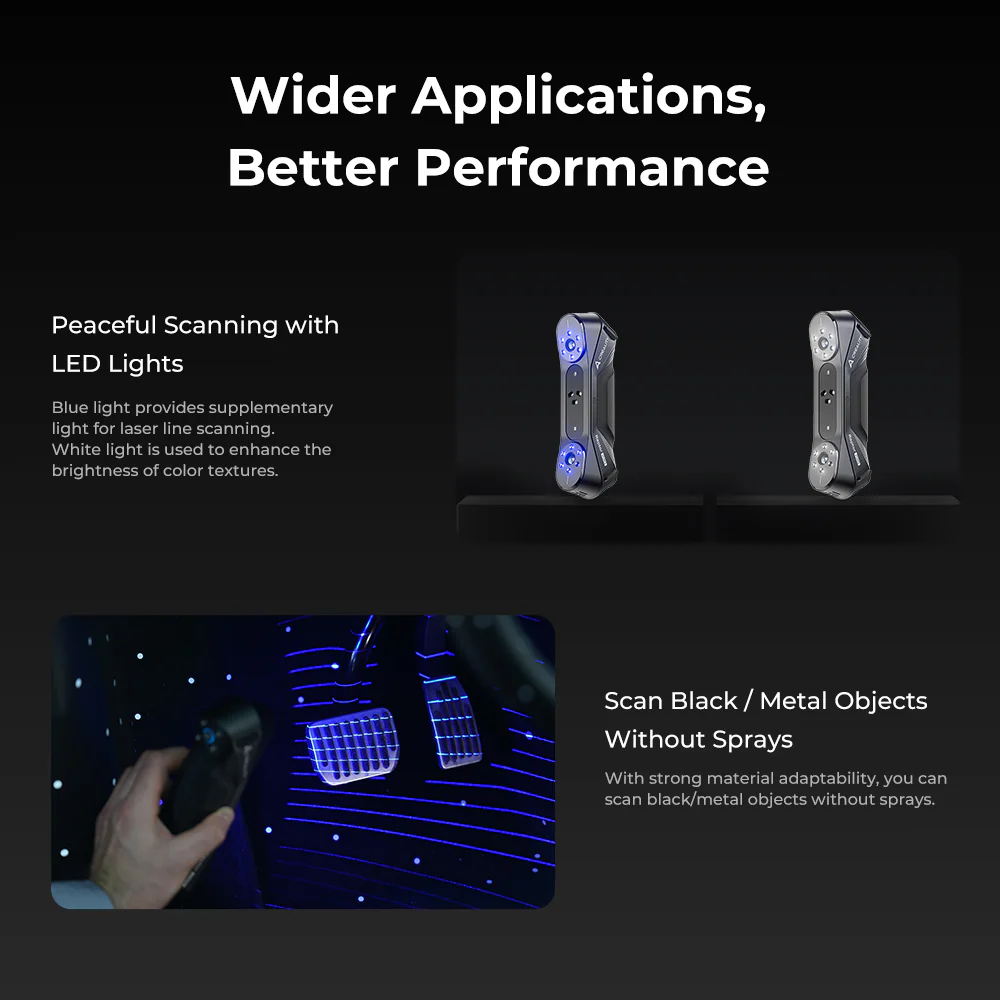

Scan Black/Metal Objects without Sprays

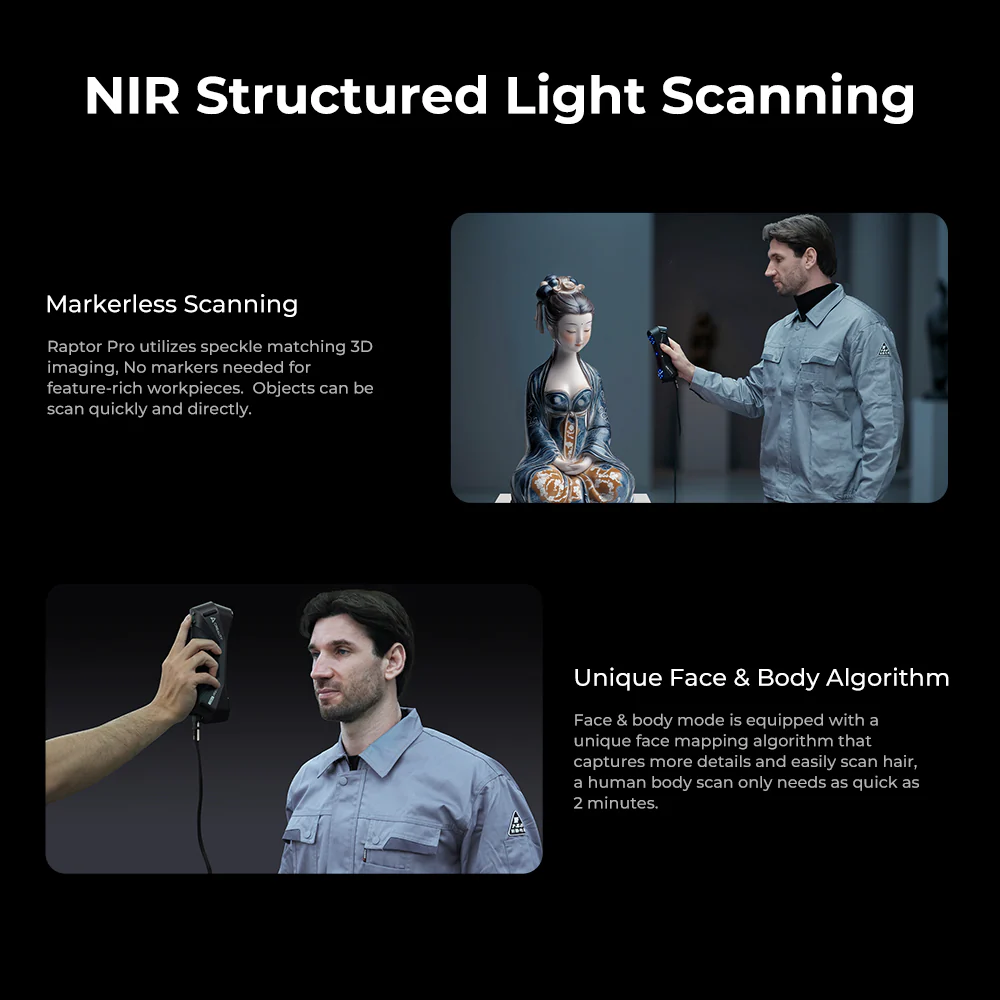

NIR Scanning up to 30fps 24-Bit Full-Color Scanning

Creality Raptor Pro 3D Scanner

Ultra-High Precision & Speed - Creality Raptor Pro achieve metrology-grade accuracy up to 0.02mm+0.08mm/m with advanced blue laser technology and scan speeds of 660,000 points/s, perfect for industrial inspection, reverse engineering, and detailed 3D modeling.

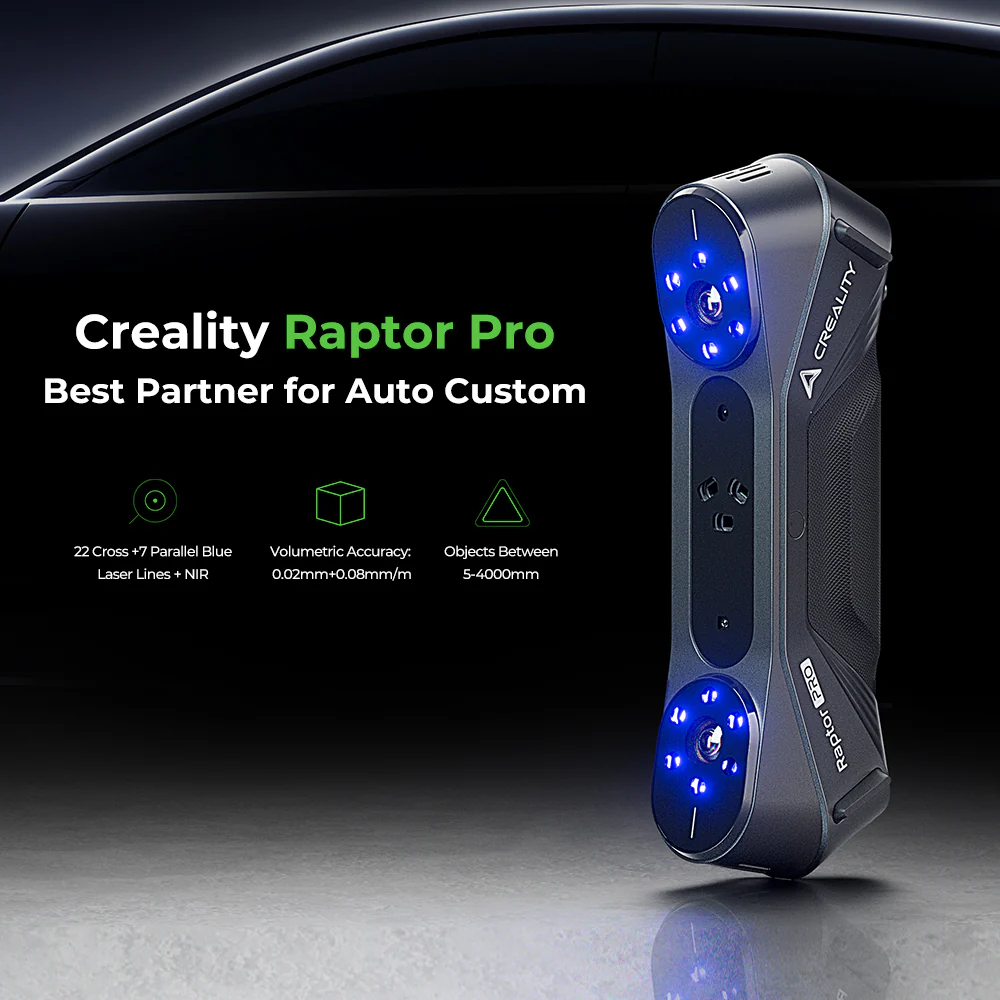

Best Partner for Auto Custom
22+7 Bule Laser Lines
Two Blue Light Modes with Seamless Switching
22 cross laser lines for scanning medium to large objects quickly, 7 parallel laser lines for partial HD scanning, with dual modes that can be freely switched, achieving both scanning efficiency and precision.
22 Cross Laser Lines
Scan Medium to Large Objects Quickly Provide comprehensive coverage for medium/large objects, minimizing the need for multiple passes or redundant scans.
7 Laser Lines for Partial HD Scanning
Each laser line is as fine as 0.1mm, capturing sharper edges and richer details.
High-quality 660,000 points/s, Fast Scan Speed
Process up to 660,000 points per second, making it ideal for quickly scanning medium to large objects.
Volumetric Accuracy
0.02mm+0.08mm/m
High Scanning Speed for Smooth Scanning
Laser Line Scanning Scan frame rate can reach up to 60fps Infrared Structured Light Scanning Scan frame rate can reach up to 30fps
Objects Between 0.2-157''/ 5-4000mm
Combining blue laser lines with infrared structured light, Raptor Pro can scan objects ranging in size from 5*5*5 mm³-4000*4000*4000 mm³. Effortlessly scanning automobile components, engineering parts, molds, human bodies and more.

Get a Call Back

Leave us your details our team will get in touch soon

Videos

Creality Raptor Pro 3D Scanner-introduction

Product Gallery

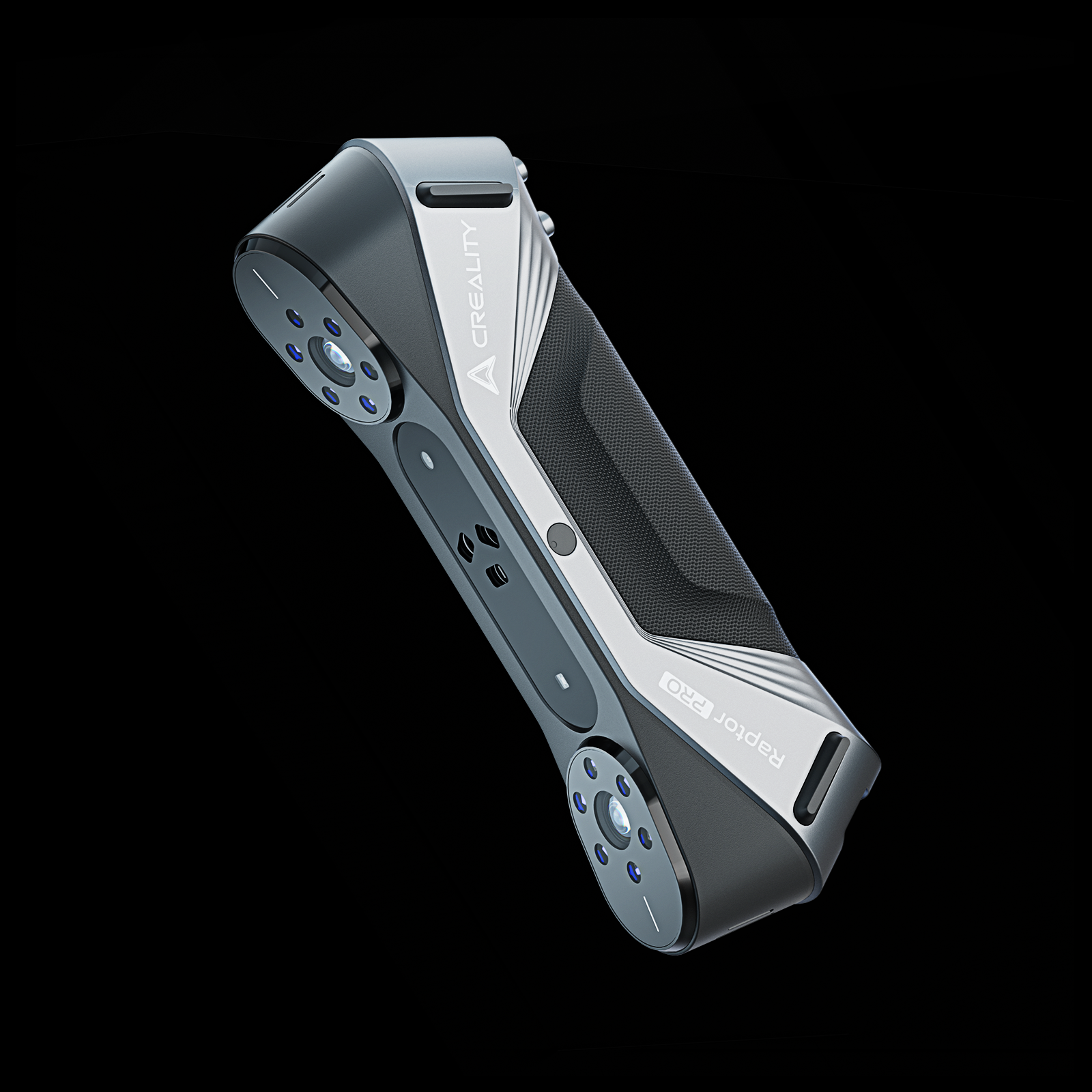

Creality Raptor Pro-4

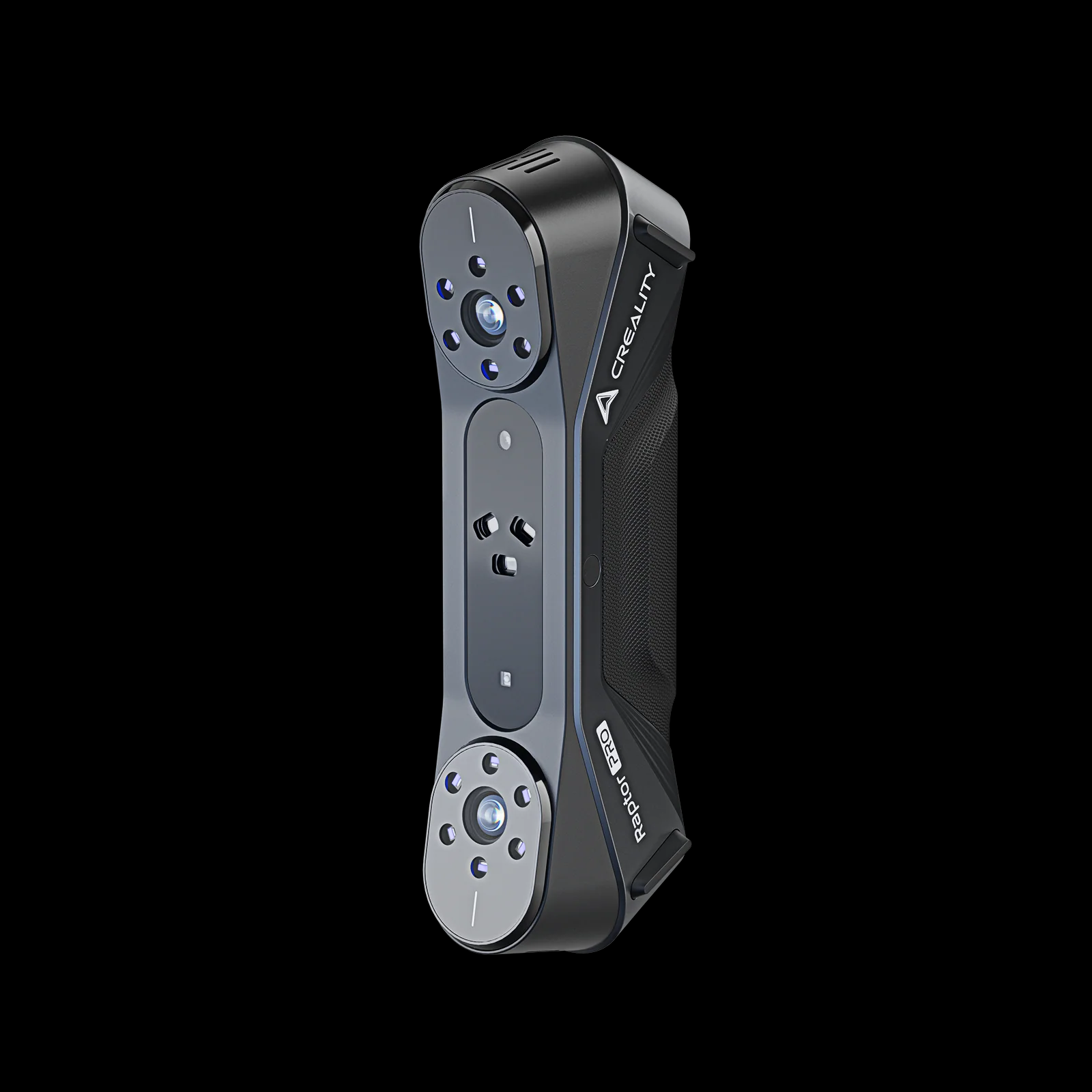

Creality Raptor Pro-5

Creality Raptor Pro-6

Creality Raptor Pro-7

Creality Raptor Pro-8

Creality Raptor Pro-1

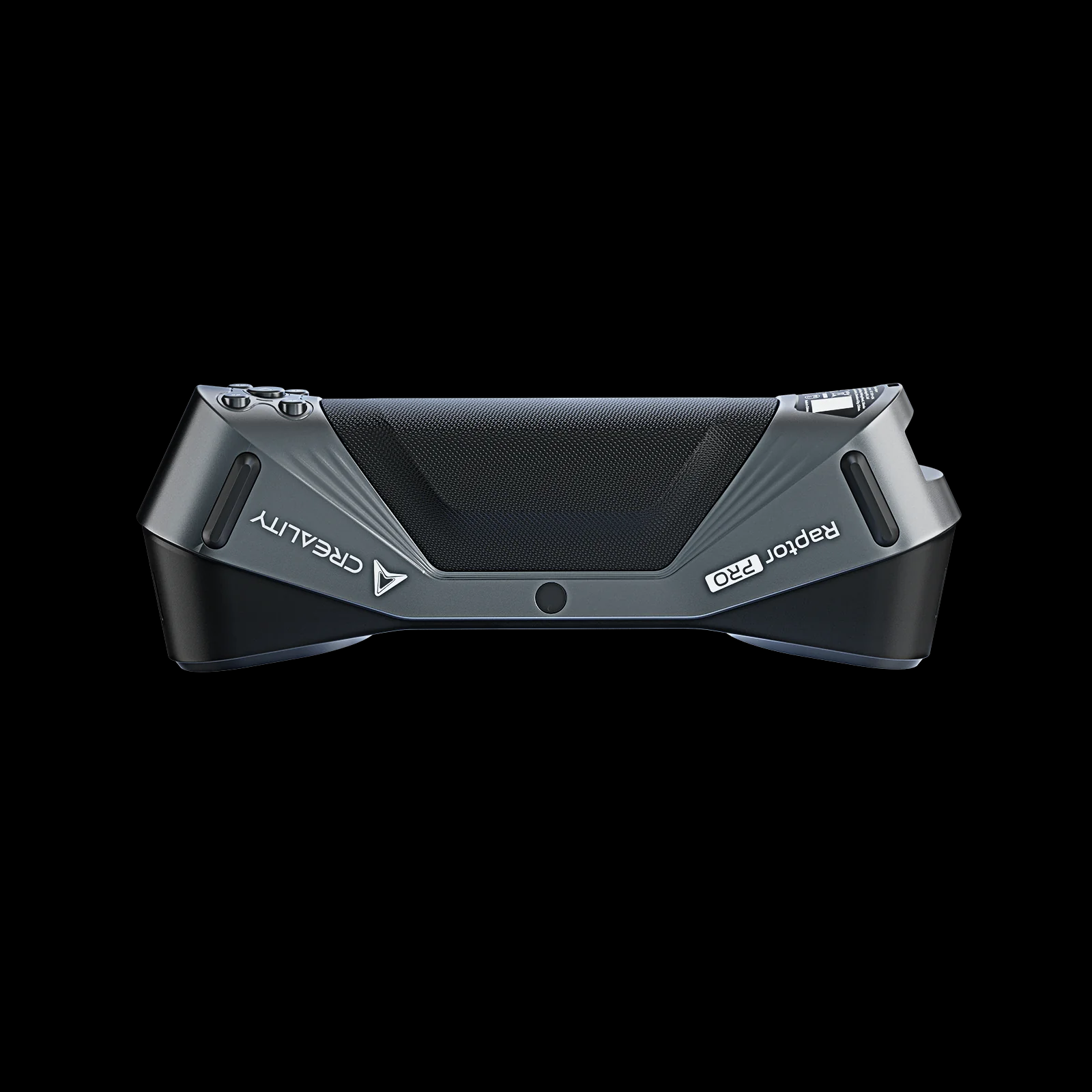

Creality Raptor Pro-2

Creality Raptor Pro-3

Detailed Specifications

Scanning Mode	7 blue parallel laser lines 22 cross blue laser lines NIR(infrared binocular structured light)
Accuracy up to	up to 0.02mm up tp 0.075mm
Volumetric Accuracy	0.02mm+0.08mm/m 0.075mm+0.1mm/m
Scanning rate	420,000 measurements/s 660,000 measurements/s 3,580,000 measurements/s
Single Capture Range	270mmx 170mm @300mm 270mm x 170mm @300mm 341mm x 232mm @400mm 397mm x 290mm @500mm 630mm x 550mm @1000mm
Working distance	160mm-400mm 200-550mm 170mm-1000mm
Outdoor Scanning	Below 50,000 lux Below 10,000 lux Below 30,000
System Support	Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above Minimum：i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above
Wireless Scanning	Support

* Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
