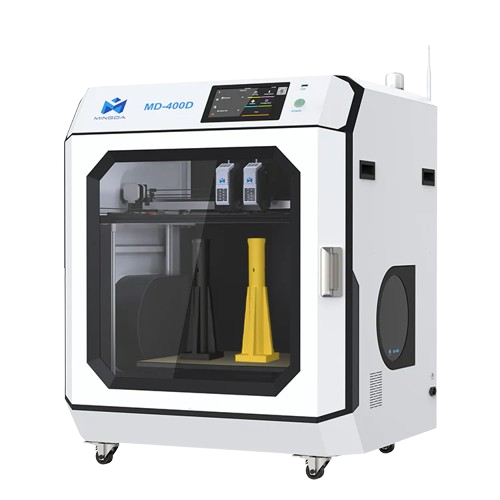

Mingda MD 400D

Mingda MD 400D

Faster High Temperature IDEX 3D Printer

Key Feature:

  • Large Build Volume
  • Free Leveling
  • PEI Flexible Printing Platform
  • Quick Heating Hotend
  • Self Check When Power On

REQUEST QUOTE

Remote Printing Multi-Machine Control

After being connected via WiFi or network cable, the MD-400D can be remotely printed and monitored in real time. At the same time, it also supports multi machine control, facilitating rapid mass production.

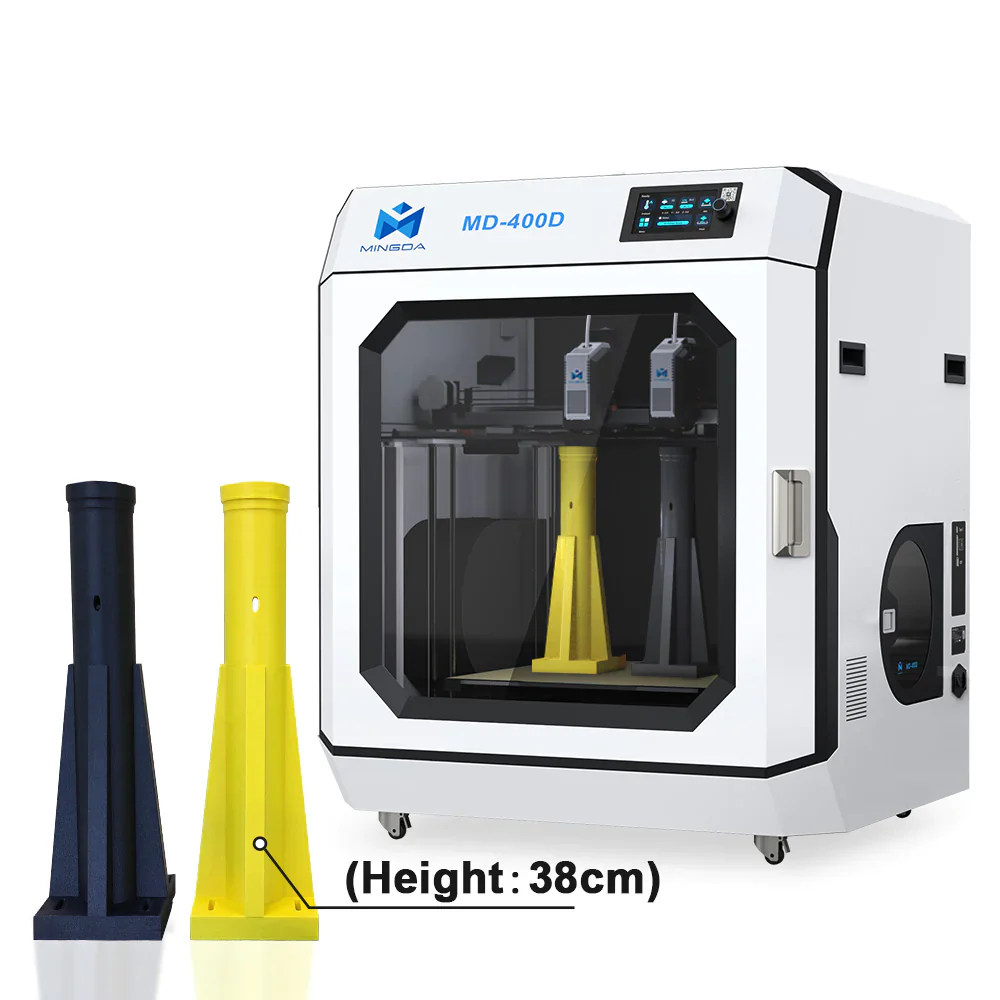

  • High quality Car Light Printing with PET-CF

    Compared with a multi-material unit, IDEX dual-material printing requires less time in filament changing and creates less waste. Plus, IDEX offers the cleanest two-extruder solution that prevents cross-contamination. It creates a clean interface between two materials, embracing hassle-free removal and avoiding stains and weird blending along the seam.

  • Breakaway Support Filament

    Much easier to remove the support, the supported surface comes out clean and smooth.

  • Soluble Support Filament

    Printing complex models with internal geometries and hollow structures is made possible by using water-soluble filament.

  • Print in Parallel

    Halve your wait time, double your productivity. IDEX is the only extrusion system with two separate extruders moving independently on the X-axis, enabling you to run two prints simultaneously.

Get a Call Back

Leave us your details our team will get in touch soon

Videos

Product Gallery

Detailed Specifications

Print Technology
  • Fused Deposition Modeling (FDM)
Print Volume
  • 400 * 400 * 400 mm
Copy Mode
  • 400(2*200)*400*400 mm
Mirror Mode
  • 320(2*160)*400*400 mm
Machine Dimensions
  • 758 * 660 * 911mm
Extruder Quantity
  • Two
Nozzle Diameter
  • 0.4mm (0.6, 0.8 mm optional)

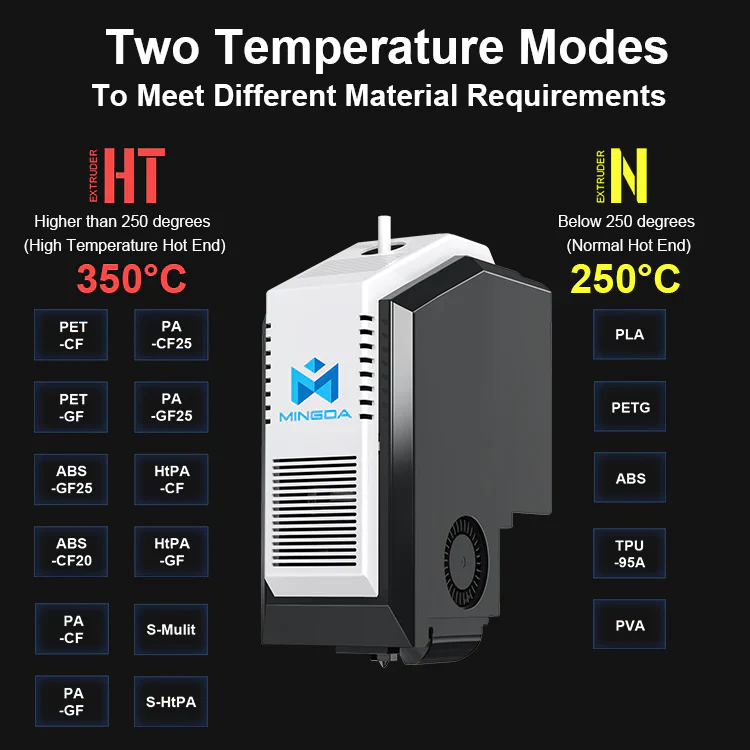

Extruder Temperature
  • ≤350°C (Recommended temperature ≤320 ℃)
Platform Temperature
  • ≤110°C
Max Flow
  • 40mm³/s
Max Print Speed
  • 300mm/s (Recommend Printing Speed: (PLA)200mm/s; (PETG)180mm/s; (PET-CF)100mm/s )
Support Software
  • MINGDA Slicer
Display Screen
  • 7-inch HDMI touch screen
Input Voltage
  • 100/240AC 50/60Hz
Rated Power
  • 800W
Firmware
  • Klipper
