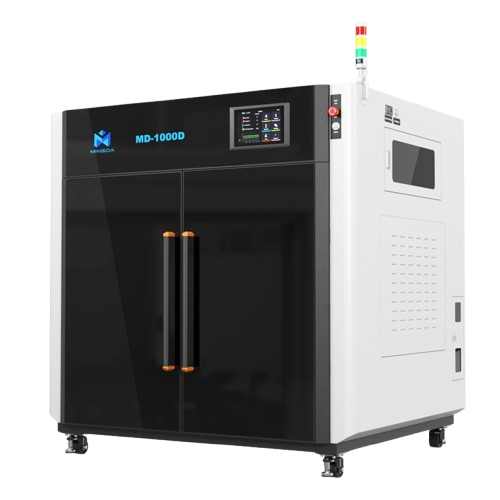

Mingda MD 1000D

Mingda MD 1000D

Super Large Size 5X Faster Printing Speed Industrial Grade 3D Printers.

Key feature:

  • Support materials can be printed
  • Print two colors simultaneously
  • Support water-soluble filament printing
  • Support TPU95A and HtPA-CF while printing TPU and PETG simultaneously

PRE-ORDER

Super Large Size 5X Faster Printing Speed Industrial Grade 3D Printers

The MD-1000D boasts a printing volume of up to 1000*1000*1000 mm and is a fully enclosed industrial 3D printer designed for producing full-sized large parts, including high-strength functional prototypes, factory fixtures, models, and molds, as well as some production parts.

Supported by HIWIN linear guides, durable custom CNC parts, and Mingda's self-developed slicing software, the MD-1000D consistently delivers fast printing speeds, high precision, and good print quality. If you are looking for an industrial-grade, large-scale 3D printer for prototyping and engineering-grade materials, MD-1000D is undoubtedly your best choice.

  • 5X Speed, Breakthrough in Printing Efficiency Once Again

    The MD-1000D prints at a speed of up to 300 mm/s, 10000 mm/s² peak acceleration, and only 0.02 s speed up from 0 to 250 mm/s, achieving ultra-high efficiency printing.

  • Automobile seats Case Sharing

    Compare other regular FDM large-format printers on the market Filament: Ordinary PLA Printing Speed: 50 mm/s Printing Time: 20 days

  • Dual Printheads Assits in Printing Complex Structural Models with Remarkable Precision

    This support-focused feature enables users to print with high-performance materials and breakaway materials. Complex models with overhanging elements often require support structures, and this is especially true when working with advanced materials. By utilizing the second extruder for support printing with a breakaway filament, the MD-1000D simplifies support removal, ensuring a smooth and successful printing experience.

  • 3D Printer Materials Suitable for Your Applications

    The hot end temperature can reach up to 350℃, allowing for the printing of engineering-grade materials such as carbon fiber, glass fiber, nylon composites, in addition to common materials

  • 10-inch IPS High-definition Large Screen

    MD-1000D has a 10-inch IPS high-definition computer screen. Compared with traditional LCD screens, it can see bright, saturated, and natural high-quality images from any angle. At the same time, it is more environmentally friendly and saves electricity.

Get a Call Back

Leave us your details our team will get in touch soon

Videos

Product Gallery

Detailed Specifications

Model
  • MD-1000D
Print Technology
  • Fused Deposition Modeling (FDM)

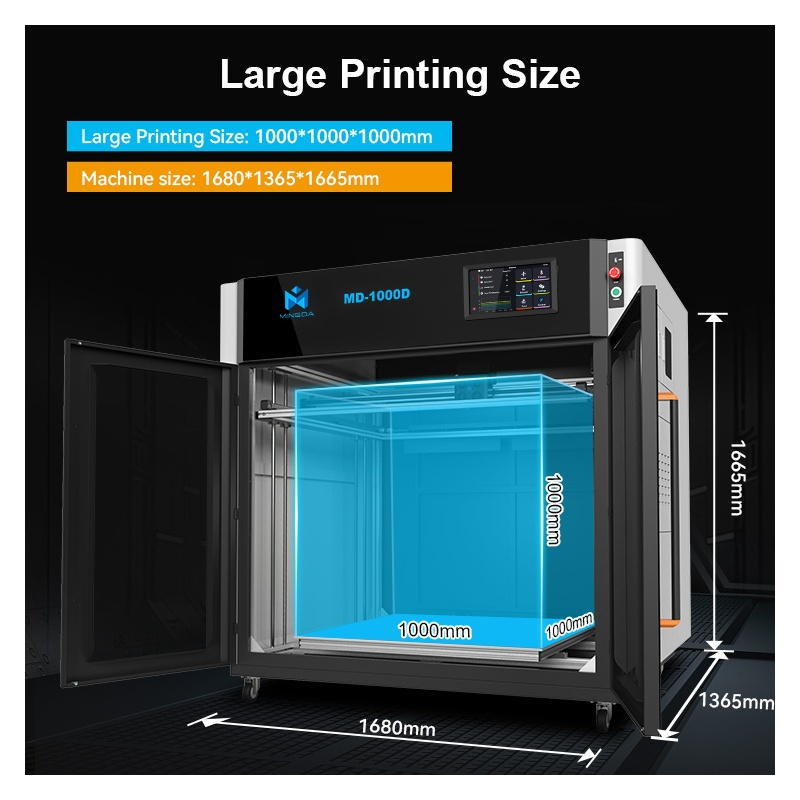

Print Volume
  • 1000 * 1000 * 1000 mm
Machine Dimensions
  • 1710*1365*1665mm
Extruder Type
  • Dual Extruders
Nozzle Diameter
  • 0.6 mm (0.4, 0.8 optional)
Max Extruder Temperature
  • ≤350°C (Recommended temperature ≤320 ℃)
Platform Temperature
  • ≤110°C
Max Flow
  • 40 mm³/s
Max Print Speed
  • 300mm/s (Recommend Printing Speed: (PLA) 200mm/s; (PETG) 180mm/s; (PET-CF) 100mm/s)
Support Software
  • MINGDA Slicer
Display Screen
  • 10-inch HDMI touch screen
Input Voltage
  • 220V 50/60Hz
Rated Power
  • 3100W
Firmware
  • Klipper
Filament Compatibility
  • Common filament:
    PLA, PETG;
    Engineering filament:
    PET-CF/GF, HtPA-CF/GF, HtPA-GF25/CF25;
    Support filament:
    S-Multi, S-HtPA, etc.
