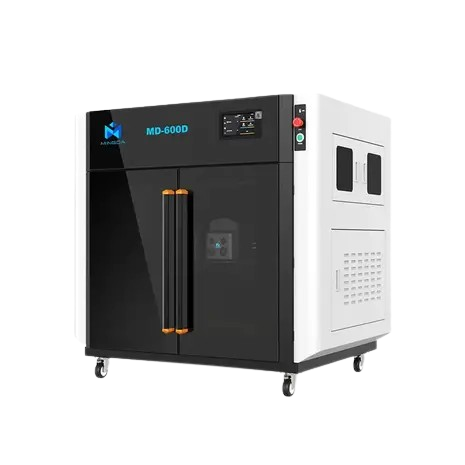

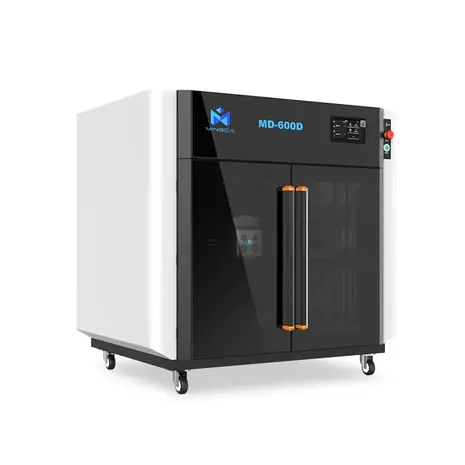

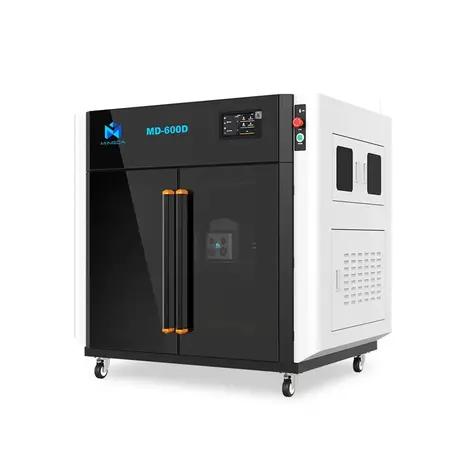

Mingda MD 600D

Mingda MD 600D

A High Precision, Fast Printing of Large Complex Industrial Parts 3D Printer.

Key Features:

  • Large 600 * 600 * 600 mm build volume
  • 200 mm/s Best printing speed
  • Industry precision
  • Long-term stability printing
  • Super easy to use

PRE-ORDER

A High Precision, Fast Printing of Large Complex Industrial Parts 3D Printer

The MD-600D 3D Printer is a powerful professional-grade 3D printer with a printing size of up to 600 mm cube. Featuring its high-temperature 350-degree hotend dual extruder and innovative rapid printing capabilities, it is designed to quickly print large industrial parts with complex structures using industrial-grade materials.

Equipped with numerous innovative processes and already achieving mass production, it has become the top choice globally within this size range and price range.

  • 5X Speed, Breakthrough in Printing Efficiency Once Again

    The MD-600D prints at speeds up to 300 mm/s, with a 10000 mm/s² peak acceleration and only 0.02 0.02s speed up from 0 to 300 mm/s, achieving ultra-high efficiency printing.

  • Wind Turbine Case Sharing

    Compare other regular FDM large-format printers on the market Filament: Ordinary PLA Printing Speed: 50mm/s Printing Time: 8 days

  • Dual Printheads Assits in Printing Complex Structural Models with Remarkable Precision.

    This support-focused feature enables users to print with high-performance materials and breakaway materials. Complex models with overhanging elements often require support structures, and this is especially true when working with advanced materials. By utilizing the second extruder for support printing with a breakaway filament, the MD-600D simplifies support removal, ensuring a smooth and successful printing experience

  • Exceptional Stability In Long-Time Printing

    Ensures the stability of the machine, greatly extending its lifespan. High-quality profiles and hardware guarantee sustained and efficient operation of the machine. MINGDA 3D printers, developed since 2012, have been in operation for over 11 years, with each machine averaging over 35,000 hours of printing time, showcasing unparalleled stability.

  • PEI Flexible Printing Platform

    It has strong adhesion, high temperature resistance, and is suitable for various consumables. It can be easily removed by bending.

  • Hands-Free Auto Leveling

    Making preparation before printing more convenient and accurate first-layer detection.

Get a Call Back

Leave us your details our team will get in touch soon

Videos

Product Gallery

Detailed Specifications

Model
  • MD-600D
Print Technology
  • Fused Deposition Modeling (FDM)

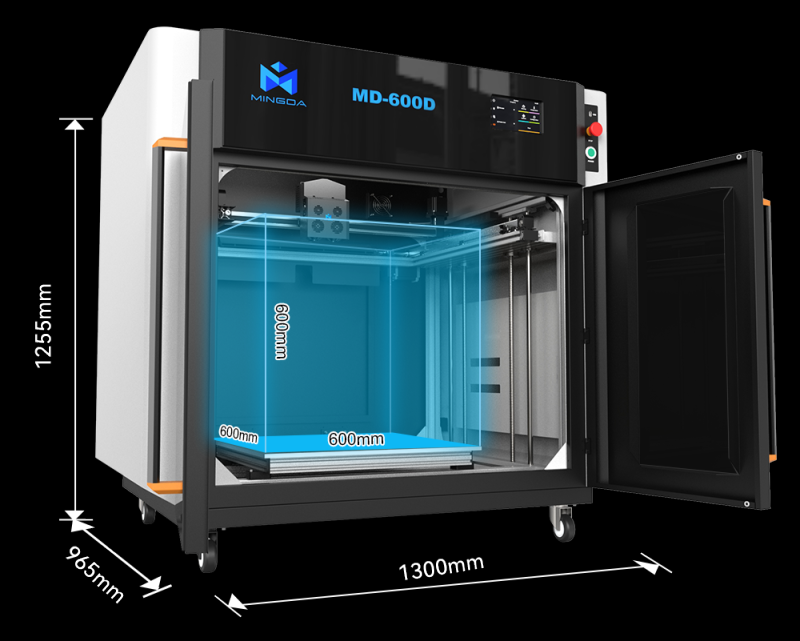

Print Volume
  • 600 * 600 * 600 mm
Machine Dimensions
  • 1325 * 965 * 1265 mm
Extruder Type
  • Dual Extruders
Nozzle Diameter
  • 0.6 mm (0.4, 0.8 optional)
Max Extruder Temperature
  • ≤350°C (Recommended temperature ≤320 ℃)
Platform Temperature
  • ≤110°C
Max Flow
  • 40mm³/s
Max Print Speed
  • 300 mm/s (Recommended Printing Speed: (PLA) 200 mm/s; (PETG) 180mm/s; (PET-CF) 100mm/s)

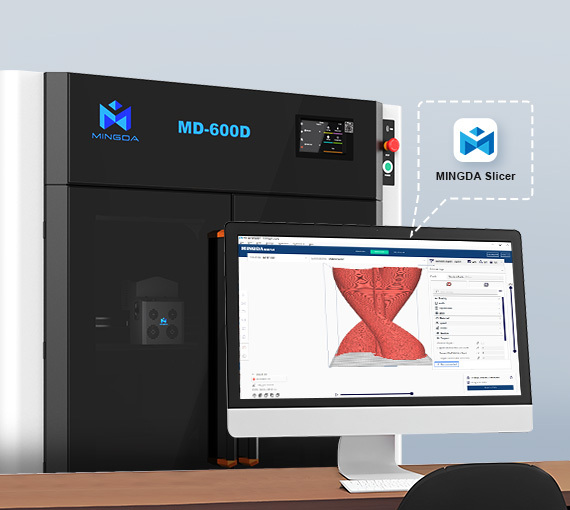

Support Software
  • MINGDA Slicer
Display Screen
  • 10-inch HDMI touch screen
Input Voltage
  • 220V 50/60Hz
Rated Power
  • 2400 W
Firmware
  • Klipper
Filament Compatibility
  • Common filament:
    PLA, PETG;
    Engineering filament:
    PET-CF/GF, HtPA-CF/GF, HtPA-GF25/CF25;
    Support filament:
    S-Multi, S-HtPA, etc
