As manufacturing timelines shorten and component complexity increases, achieving dimensional accuracy across both external and internal geometries has become a critical challenge. Conventional inspection methods such as CMMs, gauges, and optical systems are often limited to accessible surfaces, while internal features remain unmeasurable without destructive sectioning. These limitations increase cost, reduce repeatability, and delay engineering validation.
Industrial CT measuring overcomes these challenges by enabling non destructive, full volume dimensional measurement in a single setup. By combining high-energy X-ray imaging with advanced reconstruction and metrology algorithms, CT measurement delivers precise 3D volumetric data that supports accurate evaluation of internal and external features without physically altering the component.
At RA Global Tech Solutions, our CT measuring services provide reliable dimensional metrology, wall thickness evaluation, porosity analysis, internal defect characterization, and direct 3D CAD comparison. This data-driven approach enables designers to validate designs, detect deviations early, and implement corrective actions during development or production, reducing risk and improving product quality.
What is industrial CT measuring?
Industrial CT measuring is a nondestructive dimensional metrology technique that uses X-ray computed tomography to capture complete 3D data of a component and convert it into measurable geometry. While the scanning principle is similar to industrial CT inspection, CT measuring places a strong emphasis on accuracy, traceability, and quantitative evaluation.

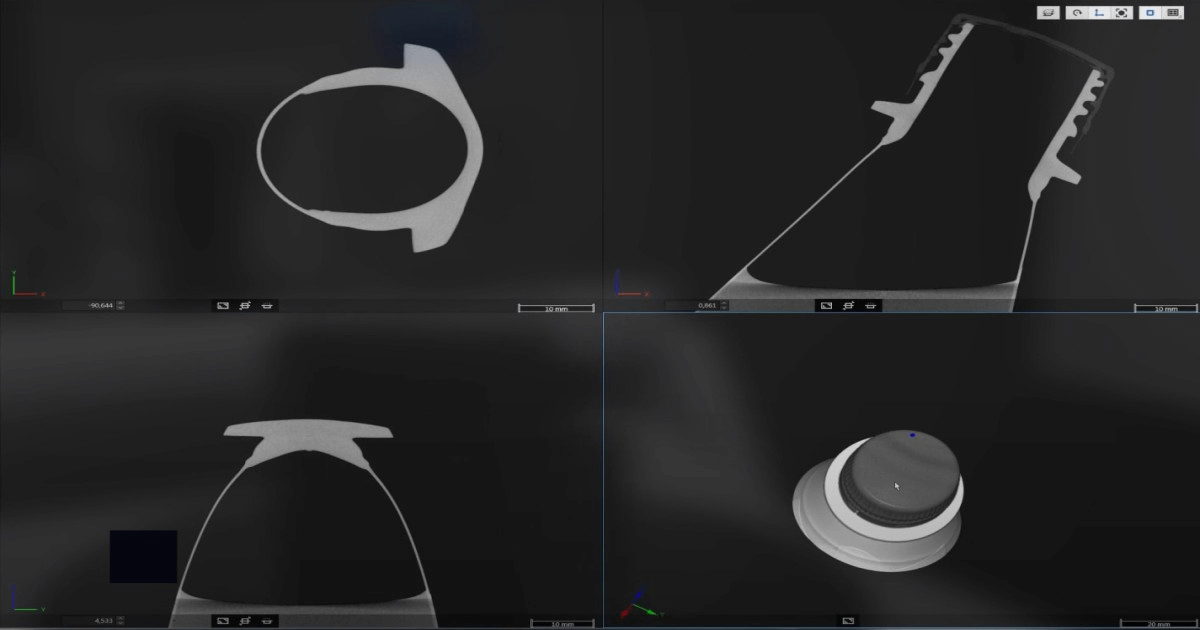

During CT measurement, the component is scanned using a high-energy X-ray source and high-resolution detector. Hundreds or thousands of radiographic projections are acquired as the part rotates. These projections are reconstructed into a high-resolution 3D volumetric dataset, from which precise surface geometry is extracted.
Unlike traditional inspection methods, CT measuring enables simultaneous measurement of both internal and external features, allowing engineers to evaluate hidden geometries and enclosed assemblies that are inaccessible using conventional techniques. It also supports direct comparison with nominal 3D CAD models, ensuring accurate verification of as-built geometry against design intent. Because CT measurement is non-destructive and does not rely on complex fixturing, components can be inspected in their complete form without sectioning or physical alteration. As a result, CT measuring has become an indispensable tool for modern quality assurance and advanced inspection engineering workflows.
How industrial CT measuring works
Industrial CT scanning follows a structured and highly precise workflow:
Scanning and Image Acquisition: A high-energy X-ray source is selected based on material type, thickness, and density. Optimized scan parameters ensure sufficient contrast and minimal artifacts to support dimensional accuracy.
Object Rotation: The component is rotated on a precision turntable while the X-ray source and detector remain fixed. This stable geometry ensures repeatability and reliable measurement results.
Radiograph Acquisition: Multiple 2D radiographic projections are captured at defined angular increments. Each image records X-ray attenuation across the component’s internal and external structures.
3D Reconstruction: Advanced reconstruction algorithms convert the radiographs into a high-resolution 3D voxel model representing the complete volume of the part.
Surface Determination: Material boundaries are identified using thresholding and edge-detection algorithms to extract an accurate surface model suitable for dimensional measurement.
Measurement and Evaluation: The extracted geometry is analyzed using CT metrology software to perform dimensional measurements, wall thickness analysis, GD&T evaluation, and direct 3D CAD comparison, supporting confident engineering and quality decisions.
RA Global Tech Solutions, CT Measuring Services provides a fast, flexible, and non-destructive solution for dimensional measurement of complex components and hidden internal geometries commonly encountered in modern manufacturing. Unlike traditional inspection methods that rely on cutting or sectioning, adding time, cost, and operational complexity, CT measurement enables complete internal and external dimensional evaluation in a single 3D scan.
Using advanced industrial CT technology, RA Global Tech Solutions delivers high-precision volumetric data that supports accurate wall thickness measurement, quantitative detection of cracks, pores, voids, and inclusions, as well as verification of complex geometries and assembly integrity. Our CT measuring services are application-specific, ensuring efficient data acquisition and reliable evaluation across a wide range of materials and component types.
Backed by experienced metrology professionals, RA Global Tech Solutions ensures accurate analysis, traceable reporting, and actionable insights, making CT measurement a strategic tool for efficient, reliable, and confident manufacturing decisions.
Key applications of industrial CT measuring
Industrial CT measuring is widely adopted across industries due to its ability to reveal what lies beneath the surface.
Dimensional Metrology: Full 3D measurement of internal and external features in a single setup ideal for complex parts where internal geometry directly impacts function.
Non-Destructive Testing with Measurement Context: Simultaneous detection and quantification of internal defects such as porosity, cracks, and inclusions while preserving the component.
Failure Analysis: Measurement-based analysis of internal structures and fracture patterns to identify root causes and support corrective actions.
Assembly and Weld Measurement: Verification of weld penetration, alignment, and assembly integrity without disassembly.
Reverse Engineering and 3D CAD Comparison: Accurate capture of as-built geometry for 3D CAD comparison, design correction, and replication of legacy components.
Multi-Material Component Measurement: Evaluation of interfaces, bonding quality, and dimensional interaction between different materials within an assembly.
Advantages of industrial CT measuring
Complete Internal and External Dimensional Access: Industrial CT measuring provides full-volume access to both internal and external features of a component in a single scan. Unlike conventional metrology tools that are limited to line-of-sight or surface accessibility, CT measurement captures enclosed cavities, internal channels, undercuts, lattice structures, and complex assemblies.
Non-Destructive Measurement Preserving Part Integrity: CT measuring is a completely non-destructive technique, allowing components to be inspected without cutting, sectioning, or disassembly. This preserves the original part for further testing, validation, or use, making CT measurement ideal for high-value components, prototype validation, first article inspection, and safety-critical parts.
High-Precision Metrology at Micrometer-Level Accuracy: Modern industrial CT systems, when properly calibrated and optimized, deliver dimensional measurements at micrometer-level accuracy. Advanced reconstruction, surface determination, and correction algorithms compensate for system geometry, beam hardening, and other artifacts.
Direct 3D CAD Comparison and Digital Traceability: CT measuring allows direct comparison of the measured 3D geometry with nominal 3D CAD models. Deviations can be visualized using color maps, tolerance bands, and GD&T evaluations. All measurement results are stored digitally, providing full traceability across design, manufacturing, and quality processes.
Reduced Inspection Time and Fewer Process Steps: By capturing all internal and external dimensions in a single scan, CT measurement significantly reduces the need for multiple inspection setups, fixtures, and measurement tools. Traditional workflows that require CMM inspection, sectioning, and secondary measurements can be replaced with a single CT measurement process.
Capability to Measure Complex and Inaccessible Geometries: Industrial CT measuring excels in evaluating complex geometries such as additively manufactured parts, multi-material assemblies, internal cooling channels, and thin-walled structures. Features that are inaccessible to probes or optical systems due to geometry, size, or enclosure can be measured accurately using CT data.
Industrial CT measuring in action: industry use cases
Aerospace: In the aerospace industry, components are designed with tight tolerances, complex internal features, and strict safety requirements. Industrial CT measuring is widely used for dimensional verification of turbine blades, fuel system components, and lightweight structural parts. CT measurement enables accurate evaluation of internal cooling channels, wall thickness variations, and internal cavities that directly impact thermal performance and fatigue life. By comparing CT-measured geometry with nominal 3D CAD models, engineers can detect deviations early, ensure compliance with aerospace standards, and validate both prototype and production parts without damaging high-value components.
Automotive: Automotive manufacturing increasingly relies on additively manufactured, cast, and injection-molded components that contain complex internal geometries. Industrial CT measuring allows precise measurement of internal features such as fluid passages, rib structures, and enclosed cavities that cannot be accessed using traditional metrology tools. It also supports dimensional validation of lightweight designs and multi-material assemblies, helping manufacturers ensure fit, function, and durability while reducing inspection time and development costs.
Medical Devices: For medical devices, dimensional accuracy and regulatory compliance are critical. Industrial CT measuring is used to validate the dimensions of implants, surgical instruments, and device assemblies without compromising sterility or part integrity. CT measurement enables precise evaluation of internal channels, porous structures, and mating features, ensuring consistency with design intent and compliance with regulatory standards. The non-destructive nature of CT measuring also allows full traceability and documentation required for medical device approval and quality audits.
Additive Manufacturing: Additive manufacturing enables unprecedented design freedom but introduces challenges related to internal geometry accuracy and wall thickness control. Industrial CT measuring provides full-volume dimensional verification of 3D printed parts, including lattice structures, internal channels, and thin walls. Designers use CT measurement to confirm as-built geometry, identify deviations from 3D CAD, and validate process consistency. This makes CT measuring an essential tool for qualifying additively manufactured components for functional, safety-critical, and production applications.
RA Global and industrial CT measuring
RA Global Tech Solutions is a Mumbai-based engineering services company specializing in advanced industrial CT measuring solutions that support dimensional metrology, quality assurance, reverse engineering, and failure analysis across diverse industries. With a strong focus on precision and reliability, RA Global Tech Solutions helps manufacturers overcome the limitations of conventional inspection methods by enabling complete, non-destructive dimensional evaluation of complex components.
By combining state of the art industrial CT technology with deep engineering and metrology expertise, RA Global Tech Solutions delivers high-resolution volumetric data that captures both internal and external geometries in a single 3D scan. This full volume approach provides manufacturers with complete dimensional visibility, including hidden features, internal channels, and enclosed assemblies that cannot be measured using traditional tools.
RA Global Tech Solutions CT measuring services are designed to support the entire product lifecycle from prototype validation and first article inspection to production quality control and failure investigation. Through direct 3D CAD comparison, accurate surface extraction, and traceable reporting, RA Global Tech Solutions enables designers to validate complex designs, identify deviations from design intent, and implement corrective actions with confidence.
Conclusion
Industrial CT measuring has redefined how manufacturers measure, validate, and optimize complex components. Its ability to deliver accurate, non-destructive, full volume dimensional data makes it an essential tool for modern engineering and quality assurance.
RA Global Tech Solutions stands at the forefront of CT measuring services helping manufacturers reduce risk, improve product quality, and accelerate innovation. Ready to measure what conventional inspection cannot? RA Global Tech Solutions is ready to 3D scan, measure, analyze, and deliver insights tailored to your engineering needs.
